10-4-223

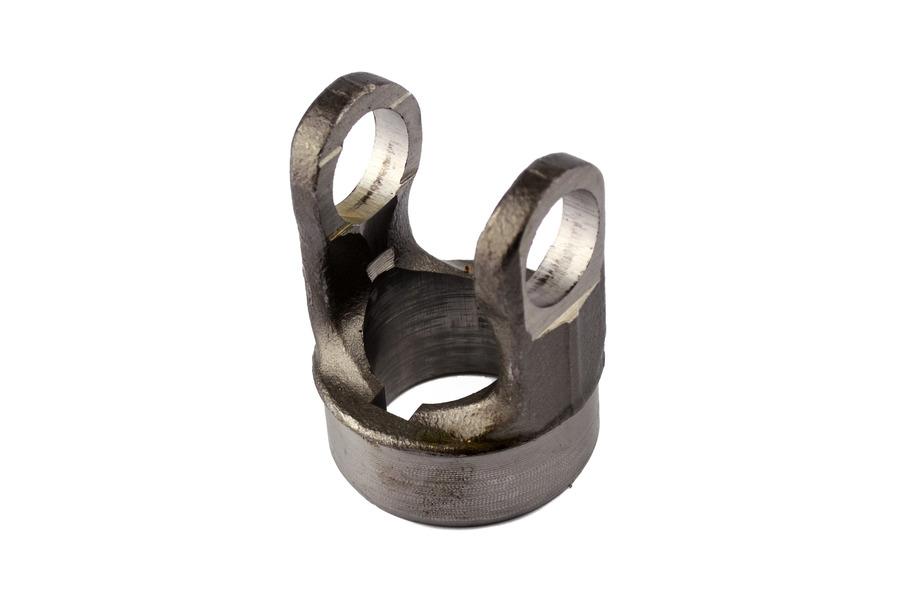

Power Take Off (PTO) End Yoke
Description
POWER TAKE OFF END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Obsolete/Discontinued
Description
POWER TAKE OFF END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

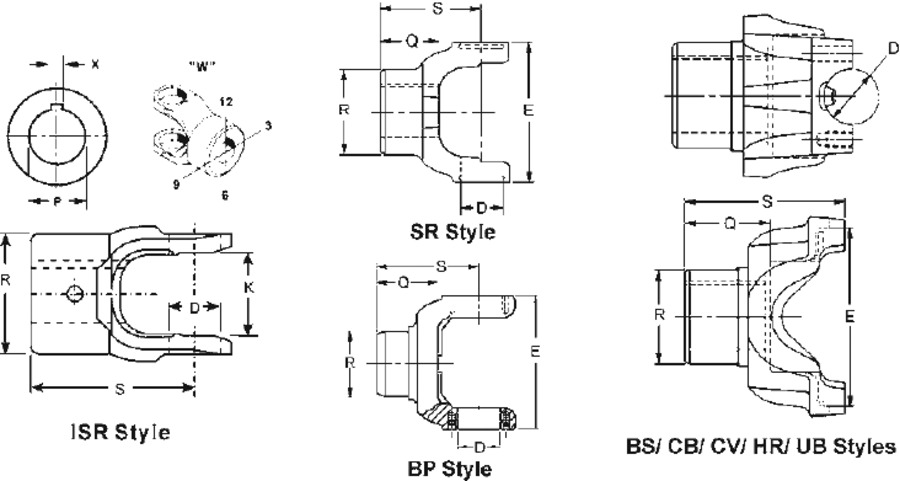

- BrandSpicerSeries1000Hub Diameter R2.250C/L To End Hub S2.500Yoke StyleISRCountry of OriginUSAGross Weight1.0 LB, 1.00 LBHigh PerformanceNHole Diameter - Max1.671Hole Diameter - Min1.666Hole Diameter (In) P1.500Inside Yoke Dimension (In) K1.500InvoicePTO JOINT COMPONENTInvolute SplineNJoint Angle #160Keyway Location W3Keyway Width - Max0.378Keyway Width - Min0.376MaterialSteelPackage TypeEAProp 65NoQuantity1Sae Keyway Width (In) X0.375Set Screw Hole Diameter (In)0.375Set Screw Location W6Tariff Code8708990000Tariff Code8708996890TypeStraight Round HoleVMRS056002014Yoke Bearing Dimension (In) D0.938
