10045511

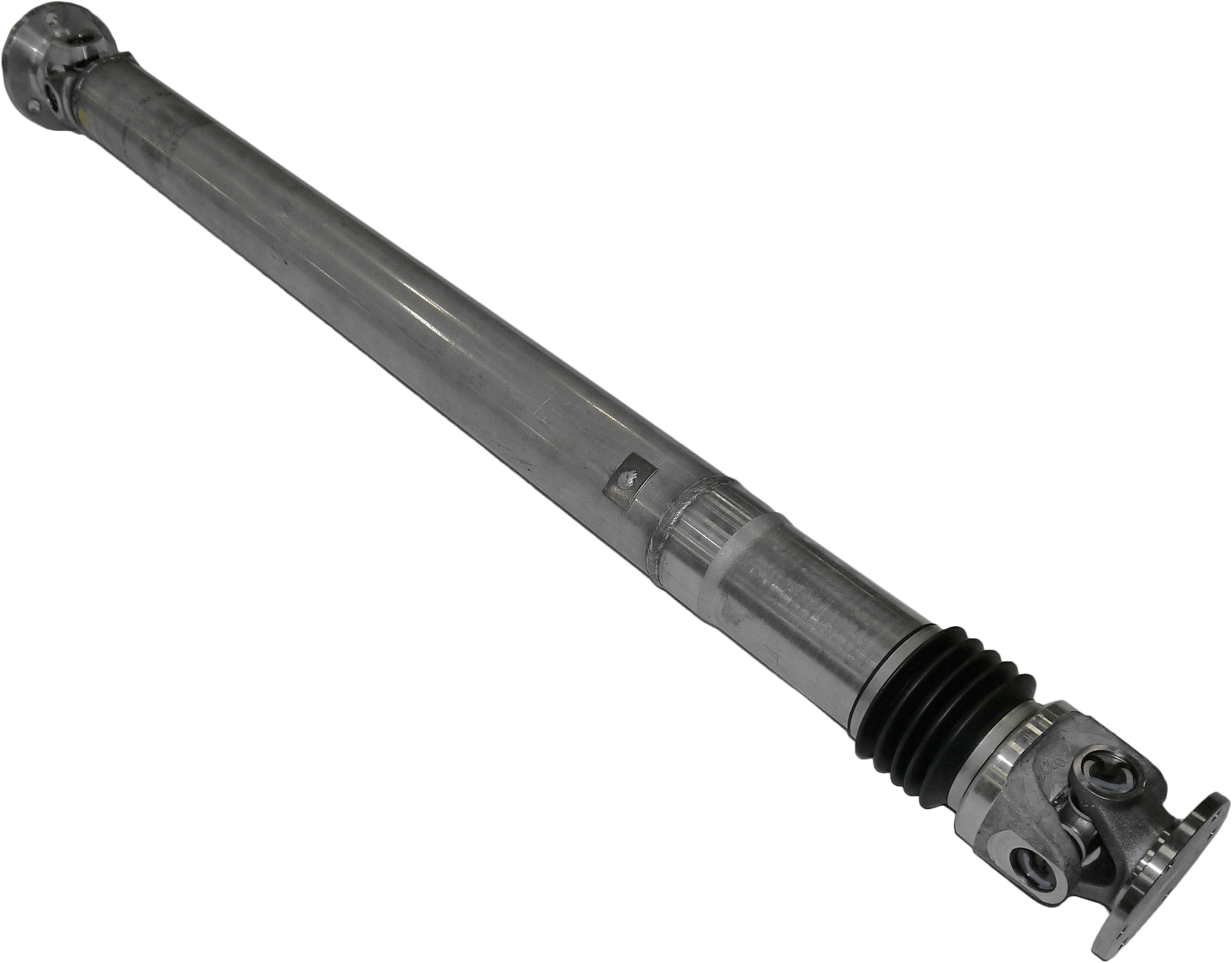

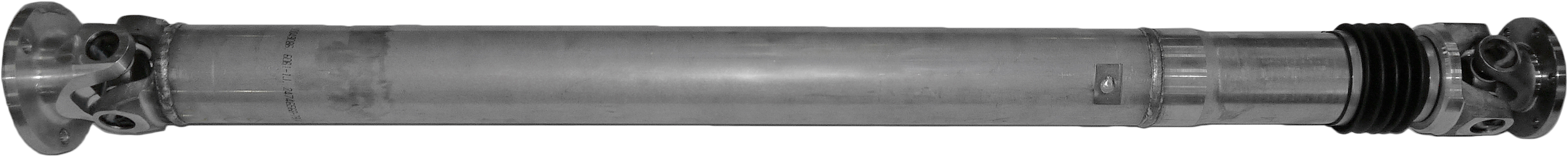

Drive Shaft
Mustang Performance:Aluminum,3.5 in. Diameter 1350 Series,V8 Manual Transmission
Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum drive shaft. Engineered specifically to enhance driveline performance in high horse power applications our design yields peak performance and optimum strength. Our reduced weight design is lighter than the OE shaft yielding reduced rotating mass, improved driving performance and quicker acceleration. The one piece design eliminates the need for a center bearing further reducing driveline weight. This direct bolt in assembly mounts directly to the OE flange and requires no adapters. Spicer parts are engineered for peak performance so hit the road with confidence knowing you are backed by the global leader in driveline technology.
Mustang Performance:Aluminum,3.5 in. Diameter 1350 Series,V8 Manual Transmission
Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum drive shaft. Engineered specifically to enhance driveline performance in high horse power applications our design yields peak performance and optimum strength. Our reduced weight design is lighter than the OE shaft yielding reduced rotating mass, improved driving performance and quicker acceleration. The one piece design eliminates the need for a center bearing further reducing driveline weight. This direct bolt in assembly mounts directly to the OE flange and requires no adapters. Spicer parts are engineered for peak performance so hit the road with confidence knowing you are backed by the global leader in driveline technology.
- BrandSpicer1/2 Max Slip (IN)0.22831/2 Max Slip (MM)5.8California Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCL (Yoke To Bearing) (IN)0.2283CL (Yoke To Flange Face)22CL Yoke To CL Yoke (IN) - COLL48.1181CL Yoke To CL Yoke (IN)-INST48.3465CL Yoke To CL Yoke (MM) - COLL1222.2000CL Yoke To CL Yoke (MM)-INST1228.0000Cl Yoke To Cl Yoke(IN) - COLL.5.8000CL(Flange Face To Flange Face)12.5Country of OriginUSACV Joints Included53.4843, NoEnd 1 Type1358.5000End 1 Type SJ Side10055876End 2 TJ Side10021342FF(Flange Face) To FF (IN)-COLL53.2559FF(Flange Face) To FF (IN)-INST53.4843FF(Flange Face) To FF (MM)-COLL1352.7000FF(Flange Face) To FF (MM)-INST1358.5000Grade Type0Gross Weight20.7 LBInboard Spline Quantity0.2283Joint Angle 112.5Joint Angle 222Max Slip (IN)0.4567Mid Slip (IN)0.2283Mid Slip (MM)5.8000No. of Universal Joint Included2Notes5.8, Flange Yoke at Both EndsOutboard Spline QuantityNoPhase (Yes/No)NoPhased - Degrees0, 1352.7000Shaft MaterialAluminumSlip AssemblyNoTariff Code8708998180Tube Length (IN)34.5669Tube Length (MM)878.0000Tube Size (IN)11.6000, 3.50 x .125U-Joint StyleSRUniversal Joints IncludedYesUnwelded/Welded Assembly53.2559, WeldedUPC Code23913500696VMRS Code024000000TypeDrive ShaftSeries1350CL (Yoke To Bearing) (MM)34.5669Cl Yoke To Cl Yoke(MM) - COLL.878.0000Max Slip (MM)11.6000, 3.50 x .125Tube Size (Mm)88.9 x 3.17Year2015, 2016, 2017
