25-1707018X

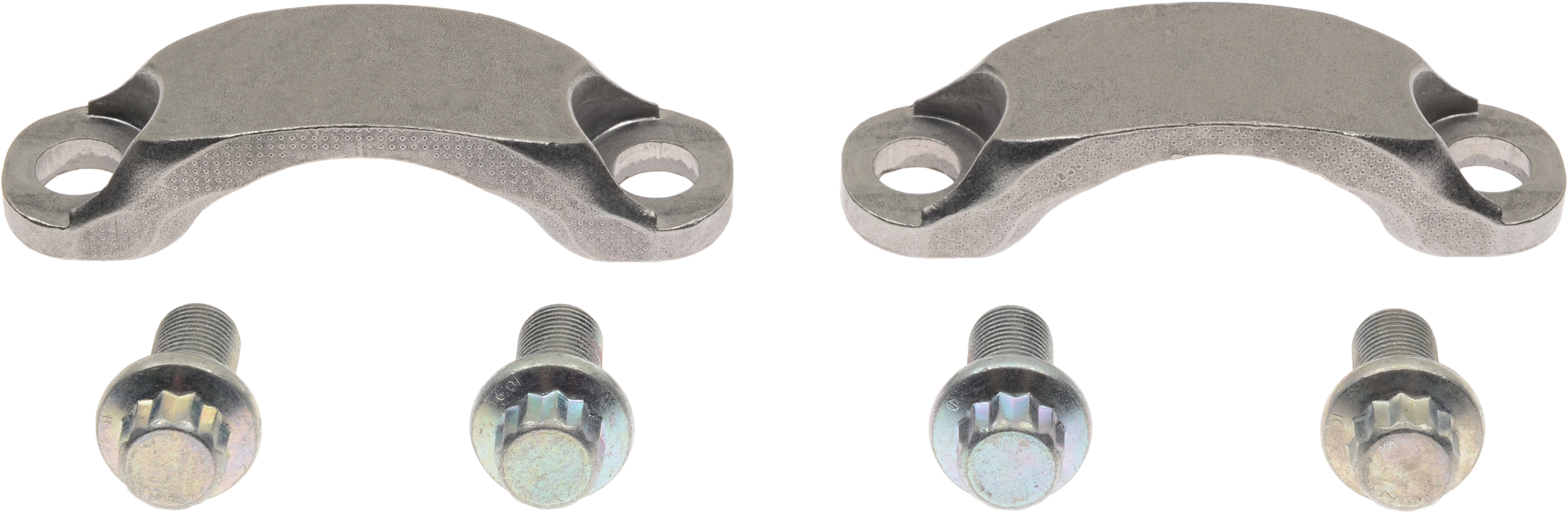

Universal Joint Strap Kit

Universal Joint Strap Kit - SPL170 Series

We are not in the business of getting by, to be good enough. We are born innovators who make products that are purpose-built with data, testing, and expertise for optimal performance. That is why we created Spicer Select, for aging vehicles that still have a job to do. Backed by Dana design and engineering standards you trust to help your customers come back satisfied.

Universal Joint Strap Kit - SPL170 Series

: BrandSpicer Select
Bolt Length0.984
Bolt Torque115-135
Box Dimensions4.40 x 4.00 x 1.50 IN
C/L To C/L3.228
Country of OriginTaiwan, China
Country of OriginTaiwan, China
Gross Weight1.2 LB
Gross Weight1.2 LB
SeriesSPL170
Tariff Code8482200000
Thread DiameterM12 X 1.25 6G
UPC Code23913761509
VMRS Code024002072
