25-3213X

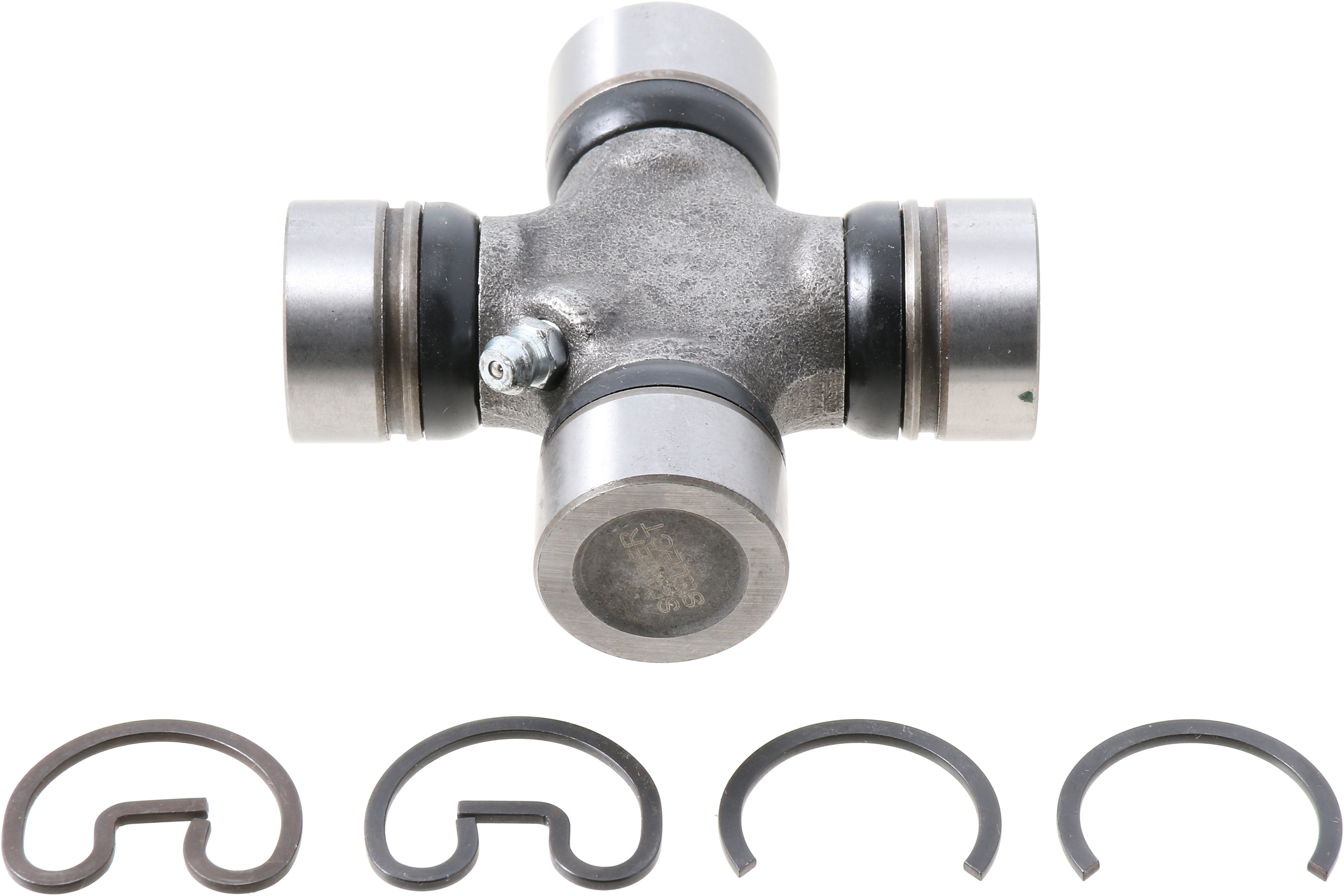

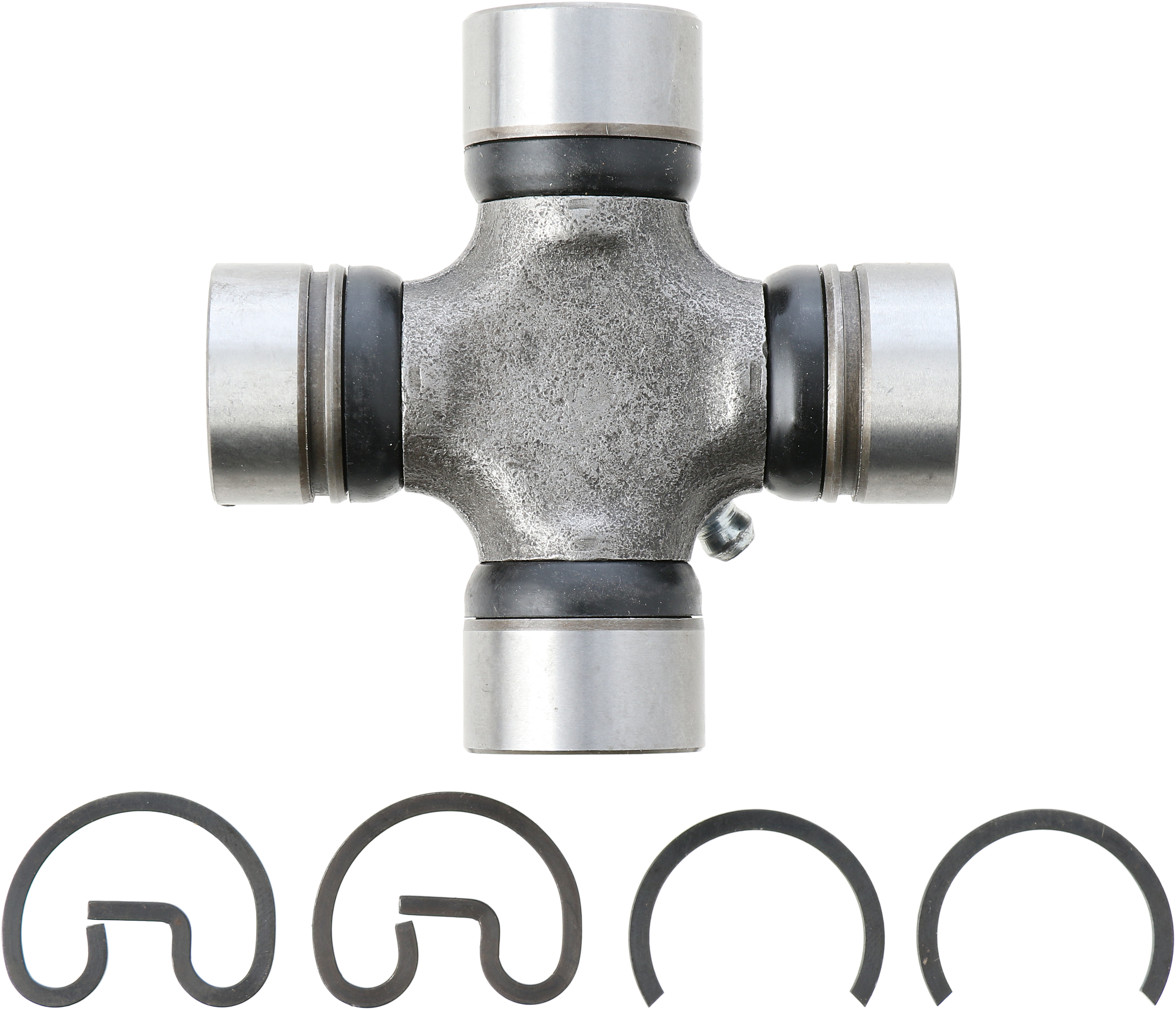

Universal Joint
Description
Universal Joint Greaseable 1310 spec Series
For the lifespan of your vehicle, trust Spicer Select. Built with Integrity. Engineered by Dana.
Description
Universal Joint Greaseable 1310 spec Series
For the lifespan of your vehicle, trust Spicer Select. Built with Integrity. Engineered by Dana.
- BrandSpicer SelectDrive Type4WDFitment NotesFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft at Rear Axle, Rear Driveshaft at TransmissionImage PositionFig. AV, Location 2LocationFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft at Rear Axle, Rear Driveshaft at TransmissionMakeBuick, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile, SaabModel9-7x, Ascender, Blazer, Bravada, Envoy, Envoy XL, Envoy XUV, H3, H3T, Hombre, Jimmy, Rainier, S10, S10 Blazer, S15, S15 Jimmy, Sonoma, Trailblazer, Trailblazer EXTYear1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010Series1310 spec SeriesGreaseableYesAOP Project NameAll Makes U Joint ProgramBearing Cap Diameter (1)1.063Bearing Cap Diameter (2)1.063Bearing Cap Diameter A (mm)26.975Bearing Cap Diameter B (mm)26.975Bearing Cap TypeRound/Round with ISR GrooveBearing Cap Type AISRBearing Cap Type BOSRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCountry of OriginChinaDetailsDifferential Bearing SetDistance Btw Snap Ring Grooves2.343Grease Fitting LocationSide of CrossGrease Zerk IncludedYesGross Weight1.06 LBHardware IncludedNoLength A (In)2.343Length A (mm)59.512Length B (In)3.219Length B (mm)81.762MaterialSteelMounting Hardware IncludedNoOEM Series1310 SPECPackage TypeEAPre GreasedNoProp 65YesQuantity1Snap Ring IncludedYesSnap Ring TypeInternal/ExternalSR(2)Brng Cap to Brng Cap(OSR)3.219Tariff Code8708998180Tariff Code8708998180TypeISR/OSR StyleVMRS024002046
