25-3250X
Universal Joint
Description

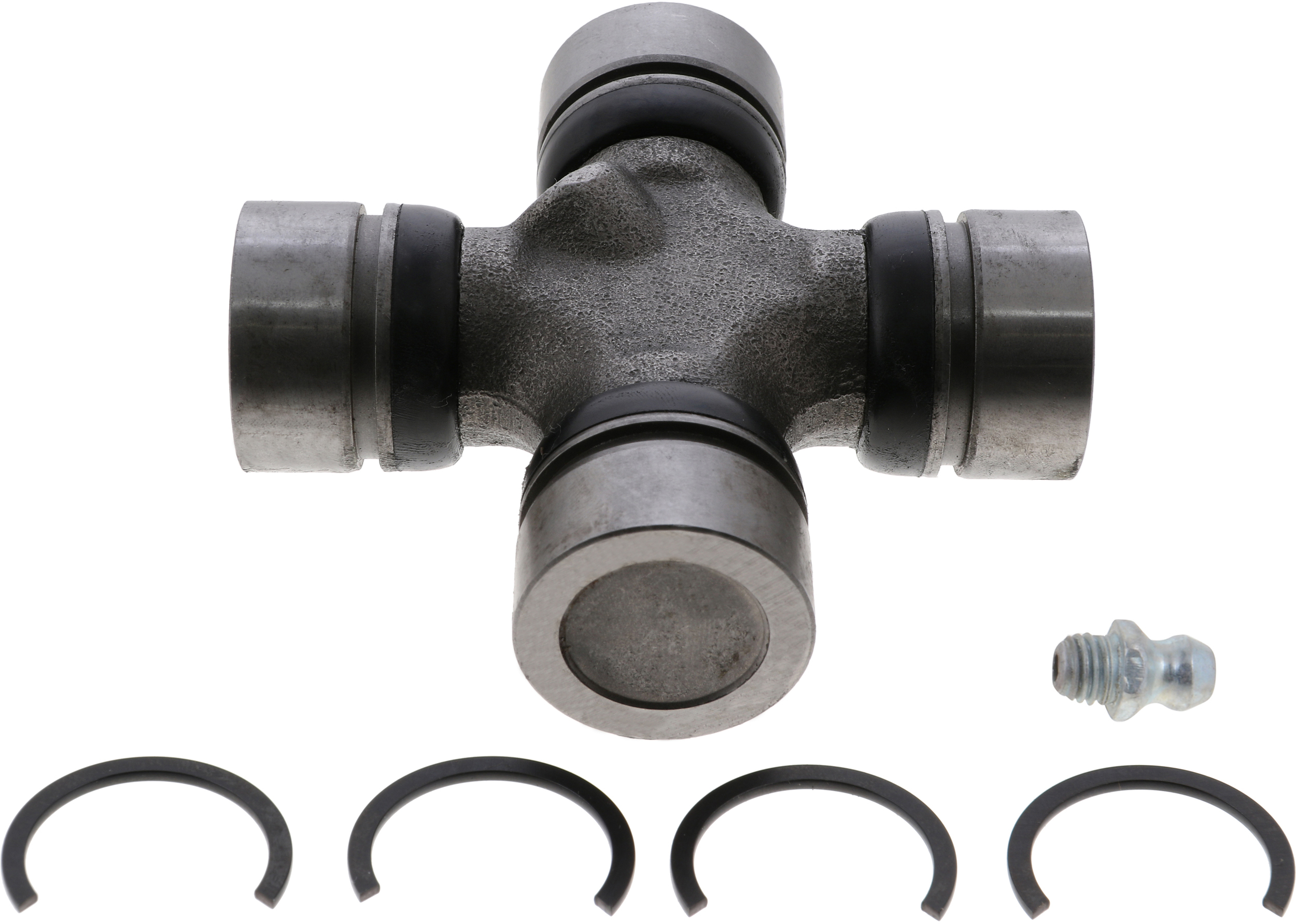

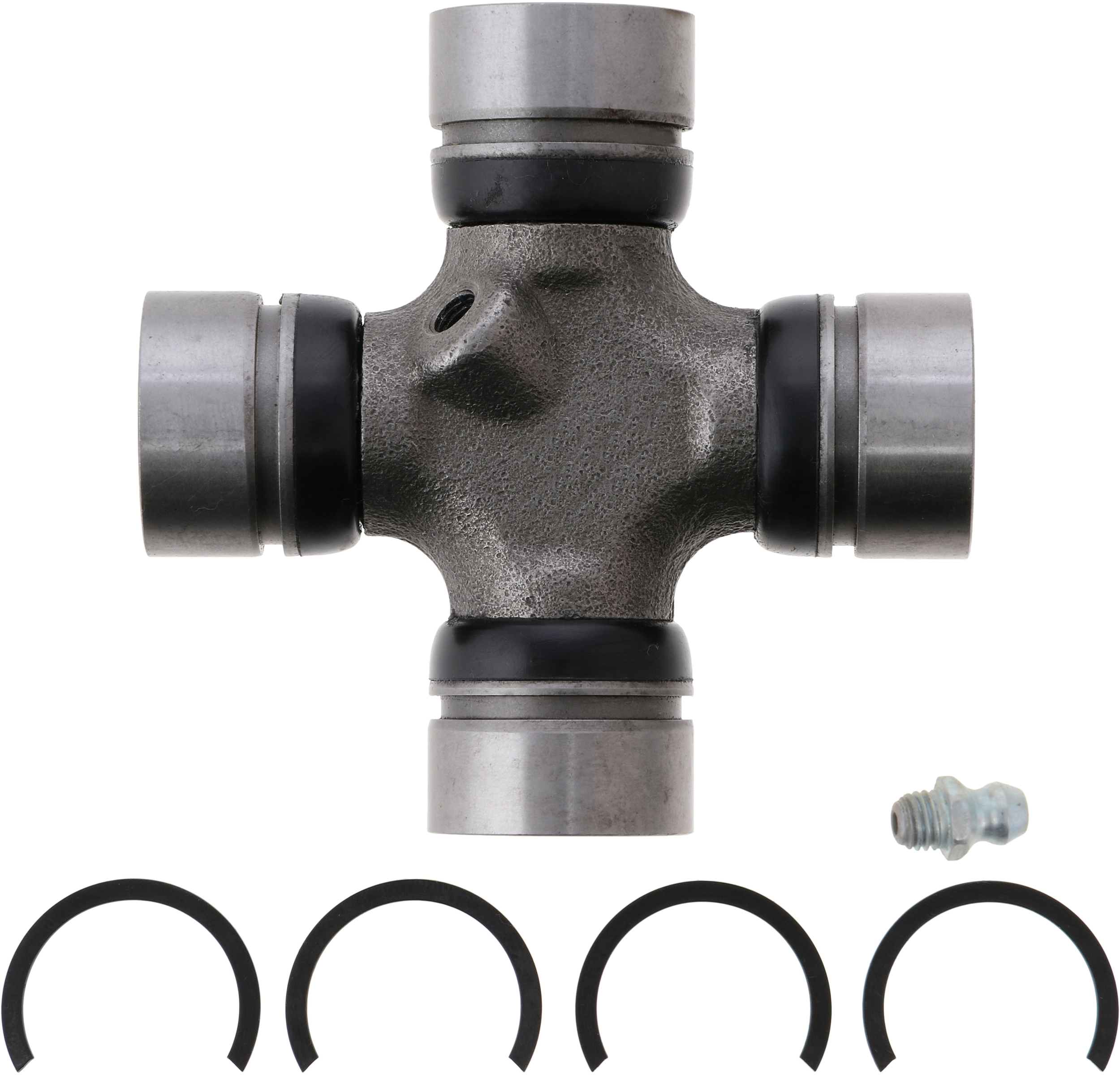

Universal Joint Greaseable Cleveland R55 Series
Choosing aftermarket products does not have to mean taking a chance on Quality. Spicer Select Aftermarket Drivetrain Products are Dana-engineered to provide dependable performance. More than 100 years of expertise is proof-positive that we get the job done right, so you can keep doing yours.
Description
Universal Joint Greaseable Cleveland R55 Series
Choosing aftermarket products does not have to mean taking a chance on Quality. Spicer Select Aftermarket Drivetrain Products are Dana-engineered to provide dependable performance. More than 100 years of expertise is proof-positive that we get the job done right, so you can keep doing yours.
- BrandSpicer SelectDrive Type4WD, RWDFitment NotesFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Intermediate Shaft at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionYear1958, 1959, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972SeriesR55 SeriesGreaseableYesBearing Cap Diameter (In)1.188Length (In)2.563LocationFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Intermediate Shaft at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionAOP Project NameAll Makes U Joint ProgramBearing Cap Diameter (2)1.188Bearing Cap Diameter A (mm)30.175Bearing Cap Diameter B (mm)30.175Bearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCountry of OriginUSADistance Btw Snap Ring Grooves2.563Distance Btw Snap Ring Grooves (ISR) (2)2.563Grease Fitting LocationSide of CrossGrease Zerk IncludedYesGross Weight1.54 LBHardware IncludedNoInvoiceDifferential Pinion Bearing SetLength A (mm)65.100Length B (In)2.563Length B (mm)65.100MaterialSteelMounting Hardware IncludedNoOEM MfgClevelandOEM SeriesR55Package TypeEAPre GreasedNoProp 65YesQuantity1Snap Ring IncludedYesSnap Ring TypeInternalSR(2)Brng Cap to Brng Cap(OSR)3.625Tariff Code8708998180Tariff Code8708998180TypeISR StyleVMRS024002046
