5-1204X

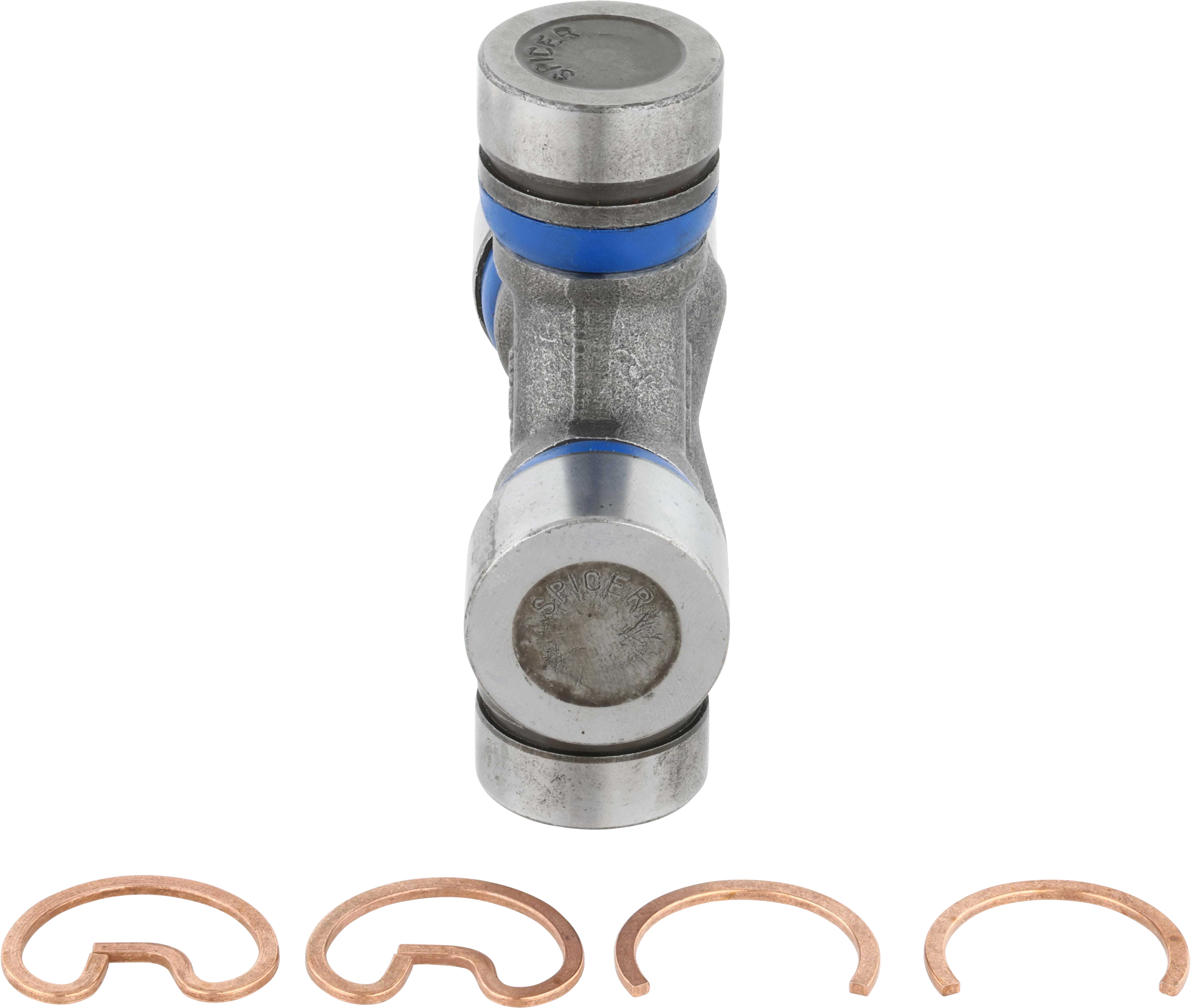

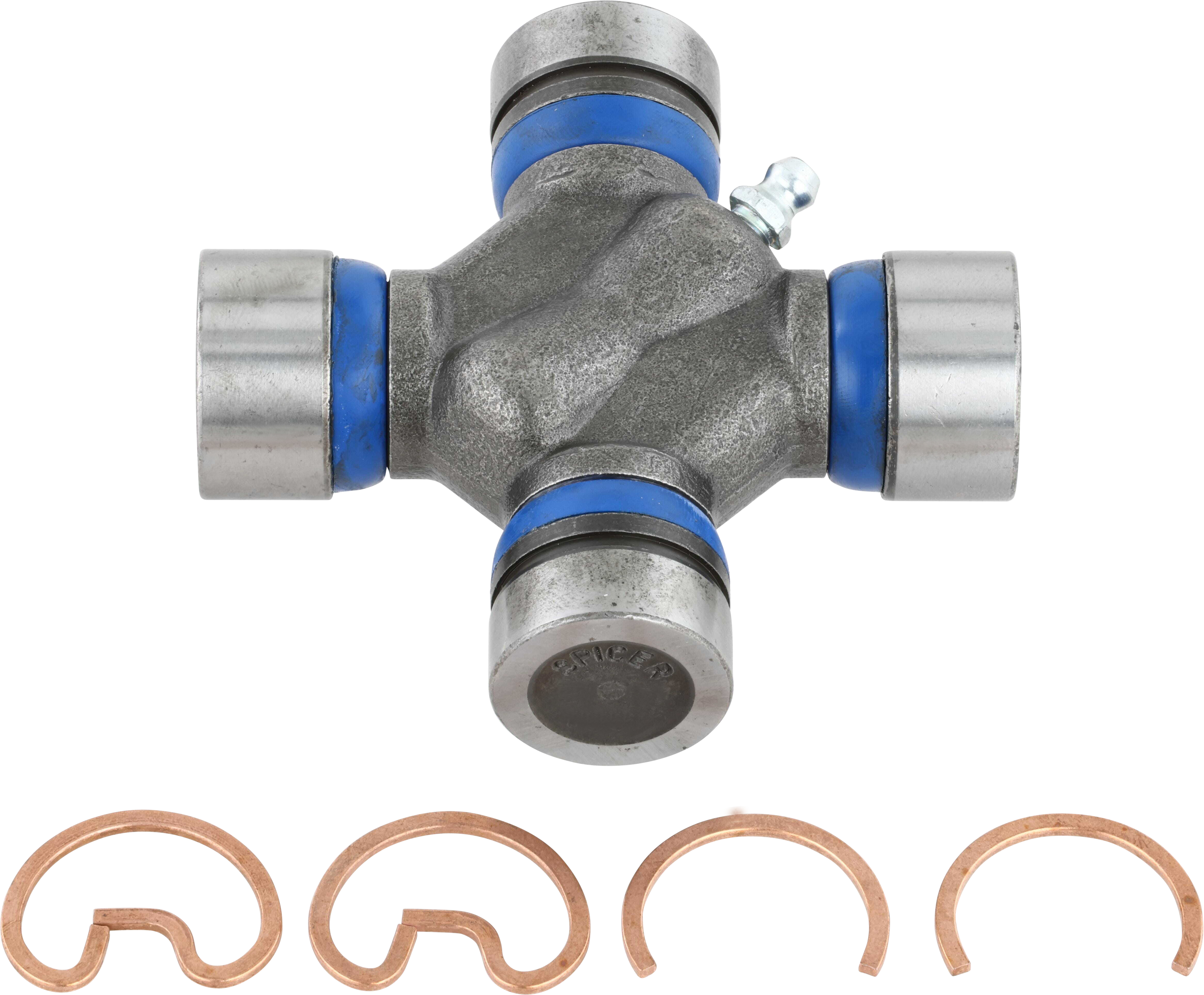

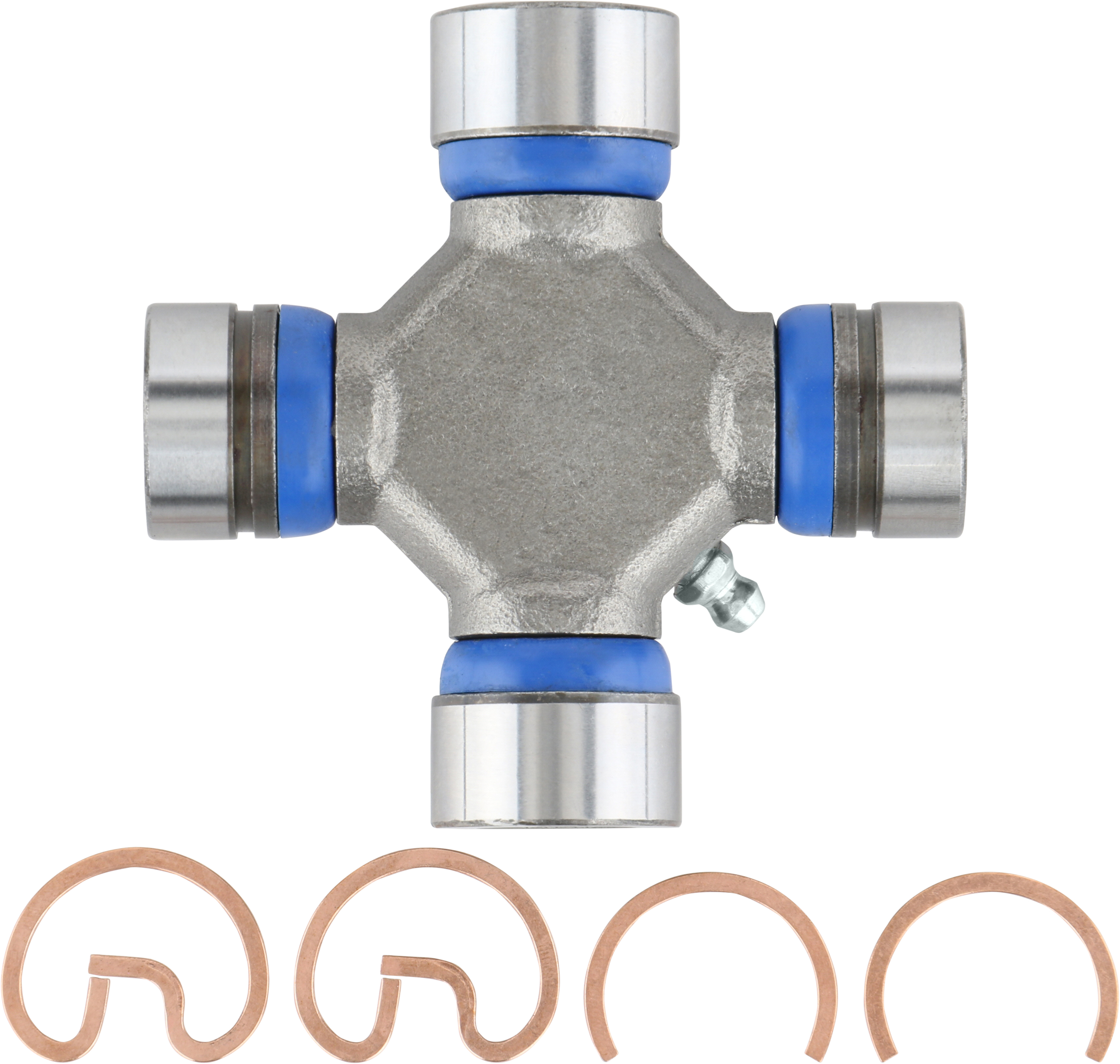

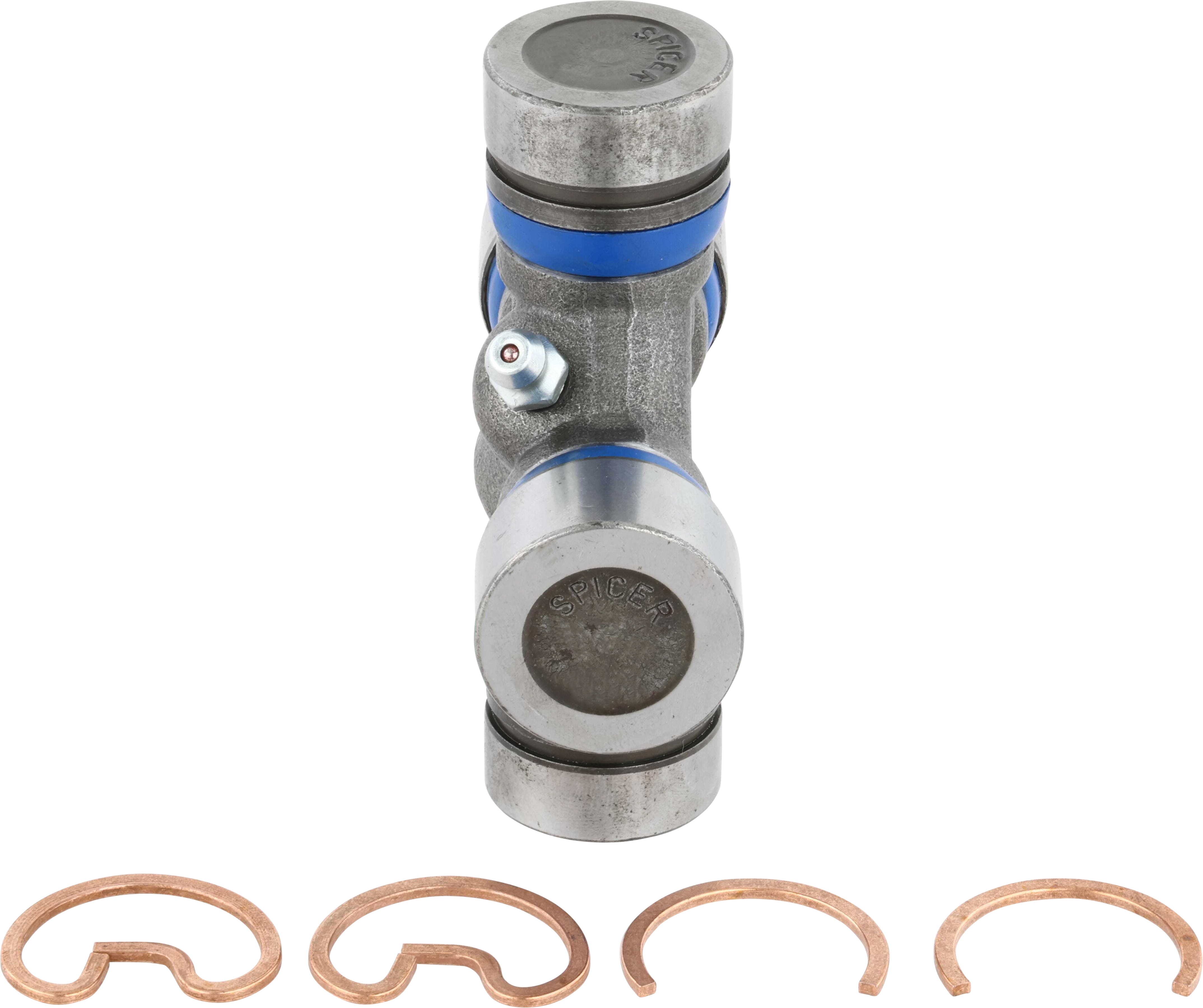

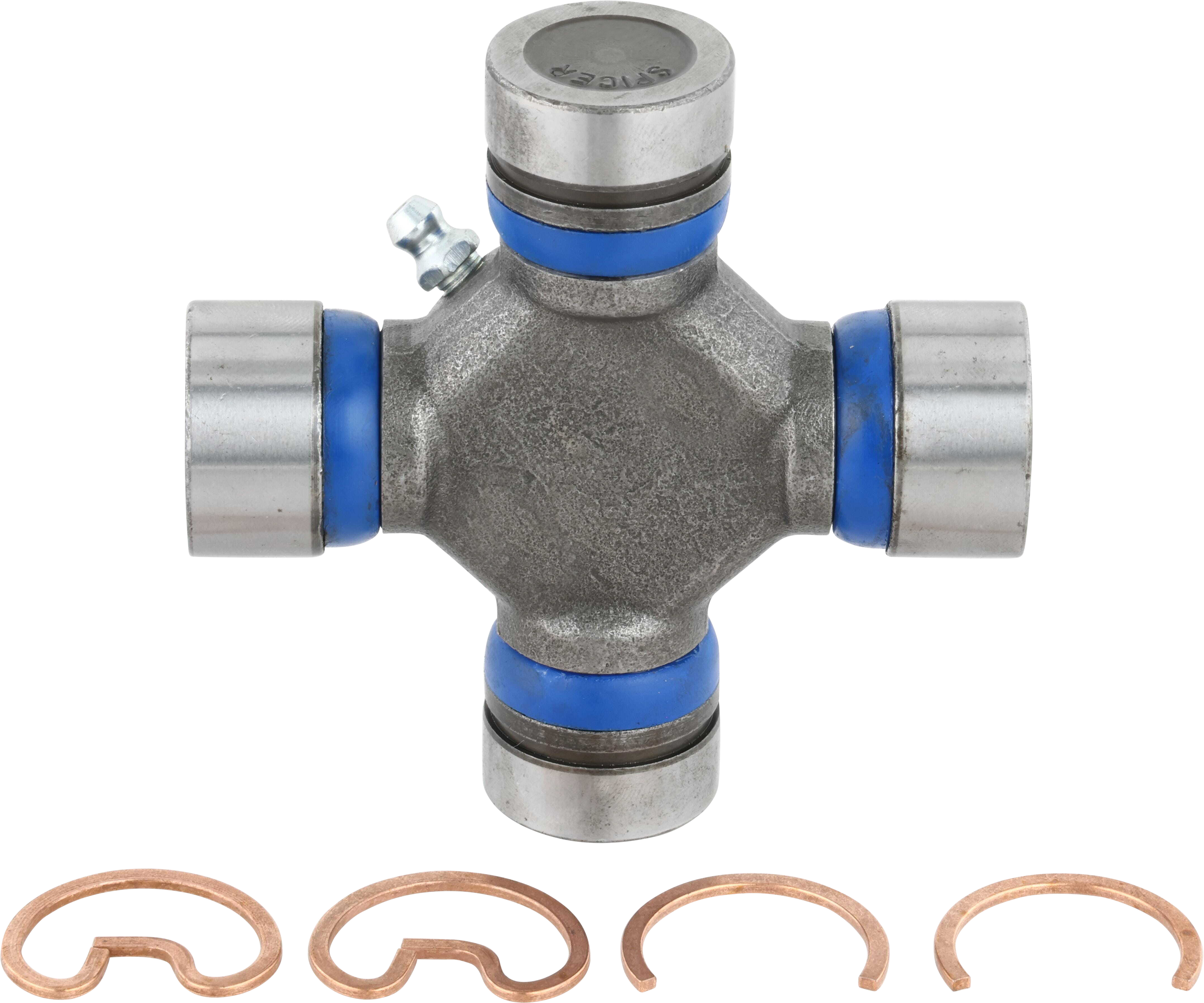

Universal Joint
Description
Universal Joint Greaseable 1330-F SPEC Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint Greaseable 1330-F SPEC Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- BrandSpicerGreaseableYesTypeISR or OSR StyleLength A (mm)70.282 or 92.100Bearing Cap Diameter A (mm)26.975Length B (mm)92.100Bearing Cap Diameter B (mm)28.575Drive Type4WD, RWDFitment NotesFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionImage PositionFig. A, Location 5, Fig. A, Location 9, Fig. AA, Location 2, Fig. AA, Location 3, Fig. AA, Location 5, 6, Fig. AA, Location 9, Fig. B, Location 5, Fig. B, Location 7, Fig. B, Location 9, Fig. I, Location 2, Fig. I, Location 5, Fig. I, Location 9, Fig. J, Location 2, Fig. J, Location 5, Fig. J, Location 9, Fig. JA, Location 2, Fig. JA, Location 5, Fig. JA, Location 7, Fig. JA, Location 9, Fig. O, Location 9, Fig. S, Location 9, Fig. Y, Location 2, Fig. Y, Location 3, Fig. Y, Location 5, Fig. Y, Location 9, Fig. Z, Location 2, Fig. Z, Location 3, Fig. Z, Location 5, Fig. Z, Location 7, Fig. Z, Location 9LocationFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionYear1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007AA Product Line AbbreviationSPIAAP Part Type3100AAP Vendor Number89878Agricultural EquipmentNApplication SpecificYBearing Cap Diameter (2)1.125Bearing Cap Diameter (In)1.062Bearing Cap FinishGroundBearing Cap TypeRound with ISR GrooveBearing Cap Type AISR or OSRBearing Cap Type BISR or OSRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCar Light TruckYCoating TypeNoneConverts This Series1330Country of OriginUSADistance Btw Snap Ring Grooves2.767Distance Btw Snap Ring Grooves (ISR) (2)2.767Engine SpecificNFreight Class50Grease Fitting LocationSide of CrossGrease TypeN.L.G.I. Grade 2Grease Zerk IncludedYesGross Weight1.06 LB, 1.4 LBHardware IncludedNoHeavy Duty TruckNHigh PerformanceNIndustrial Off Highway EquipNInvoiceU-Joint KitLength (In)2.767 or 3.625Length B (In)3.625MarineNMaterialSteelMedium Duty TruckNModel NumberSpicer 1330Motorcycle ATVNMounting Hardware IncludedNoNon-Vehicle SpecificNNotesIncludes Inside and Outside Snap RingsOEM MfgSpicerOEM Series1330SPECPackage TypeEAPersonal WatercraftNPre GreasedNoProp 65YesQuantity1Seal Color/FinishBlueSeal MaterialRubberSmall EngineNSnap Ring IncludedYesSnap Ring TypeExternalSnowmobileNSR(1)Brng Cap to Brng Cap(OSR)3.625SR(2)Brng Cap to Brng Cap(OSR)3.625Tariff Code8482200000Tariff Code8708996810To This Series1330SPECTransmission SpecificNVMRS024002046
