5-1500X
Universal Joint
Description

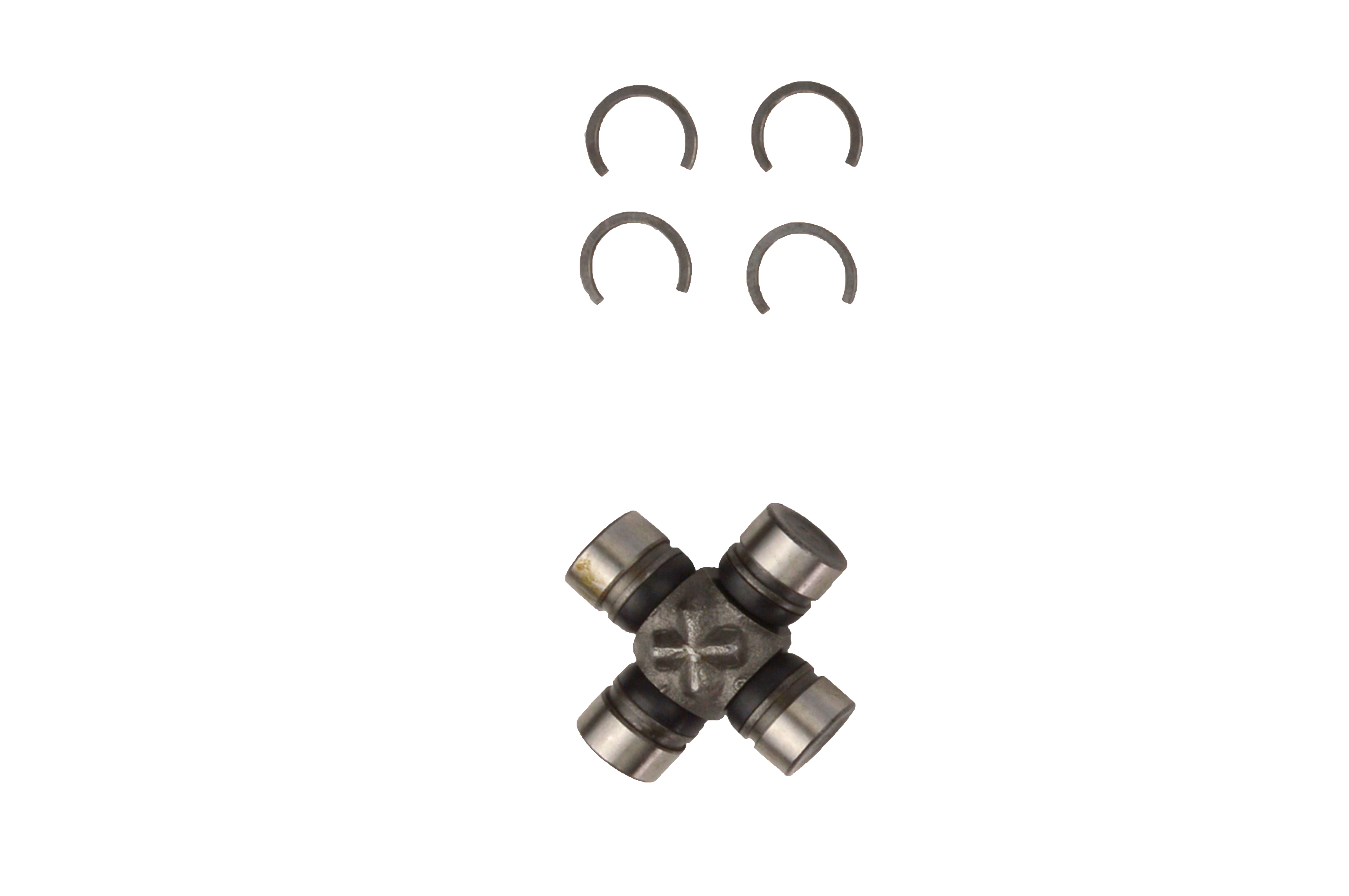

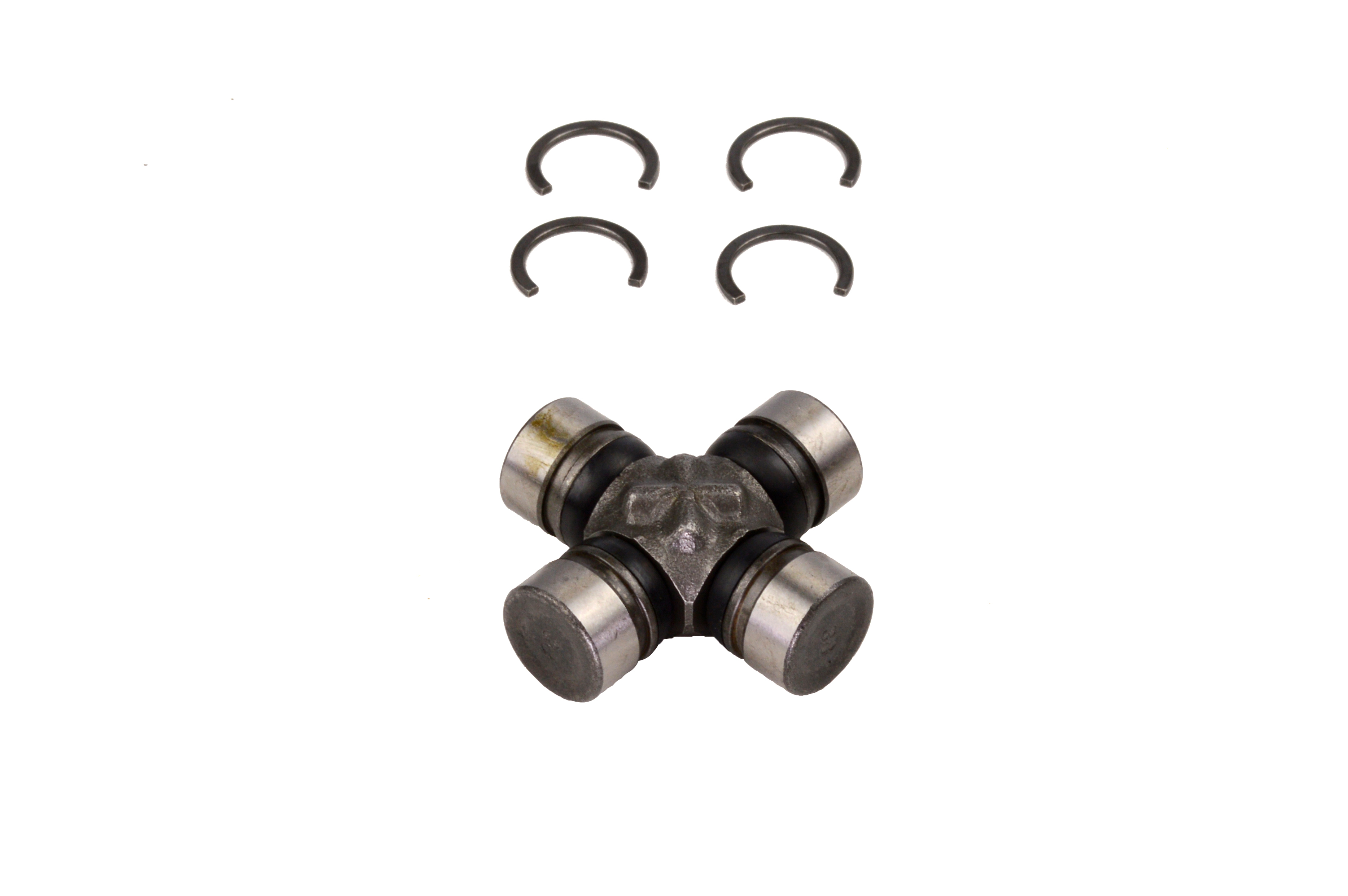

Universal Joint Non-Greaseable Toyota Nissan Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint Non-Greaseable Toyota Nissan Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- BrandSpicerDrive TypeRWDFitment NotesRear Driveshaft at Rear Axle, Rear Driveshaft at TransmissionImage PositionFig. A, Location 5, Fig. A, Location 9Year1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1981, 1982, 1983, 1984GreaseableNoBearing Cap Diameter (In)0.787Length (In)1.496LocationRear Driveshaft at Rear Axle, Rear Driveshaft at TransmissionAA Product Line AbbreviationSPIAAP Vendor Number89878Agricultural EquipmentNApplication SpecificYBearing Cap Diameter (2)0.787Bearing Cap Diameter A (mm)20.000Bearing Cap Diameter B (mm)20.000Bearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCar Light TruckYCountry of OriginJapanDistance Btw Snap Ring Grooves1.496Distance Btw Snap Ring Grooves (ISR) (2)1.496Engine SpecificNFreight Class50Grease Zerk IncludedNot RequiredGross Weight0.49 LBHardware IncludedNoHeavy Duty TruckNHigh PerformanceNIndustrial Off Highway EquipNInvoiceU-Joint KitLength A (mm)38.000Length B (In)1.496Length B (mm)38.000MarineNMaterialSteelMedium Duty TruckNMotorcycle ATVNMounting Hardware IncludedNoNon-Vehicle SpecificNOEM MfgDatsun-ToyotaOEM SeriesDatsun-ToyotaPackage TypeEAPersonal WatercraftNPre GreasedYesProp 65YesQuantity1Small EngineNSnap Ring IncludedYesSnap Ring TypeInternalSnowmobileNTariff Code8482200000Tariff Code8708996810Transmission SpecificNTypeISR StyleVMRS024002046
