5-1510X

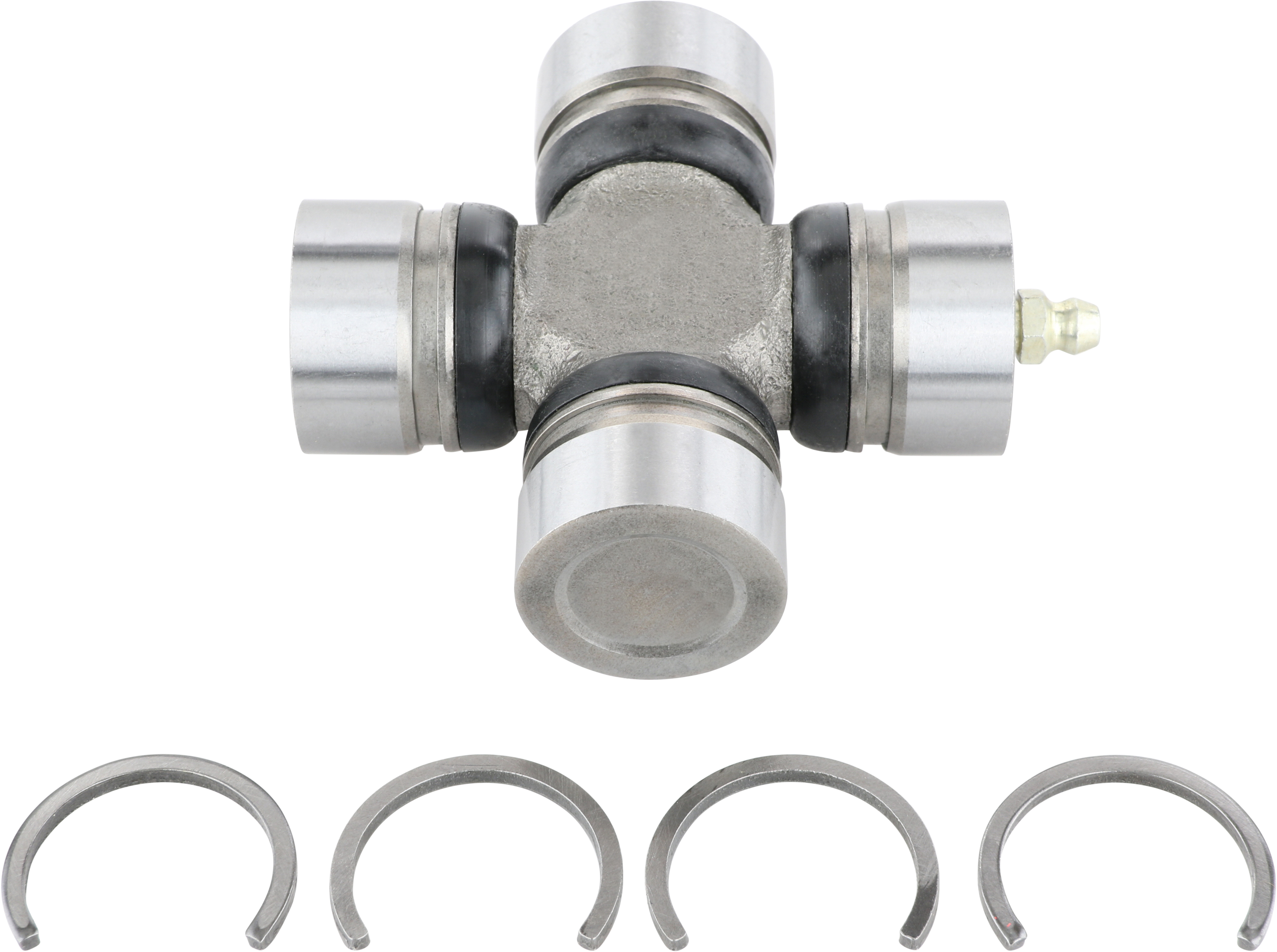

Universal Joint
Description

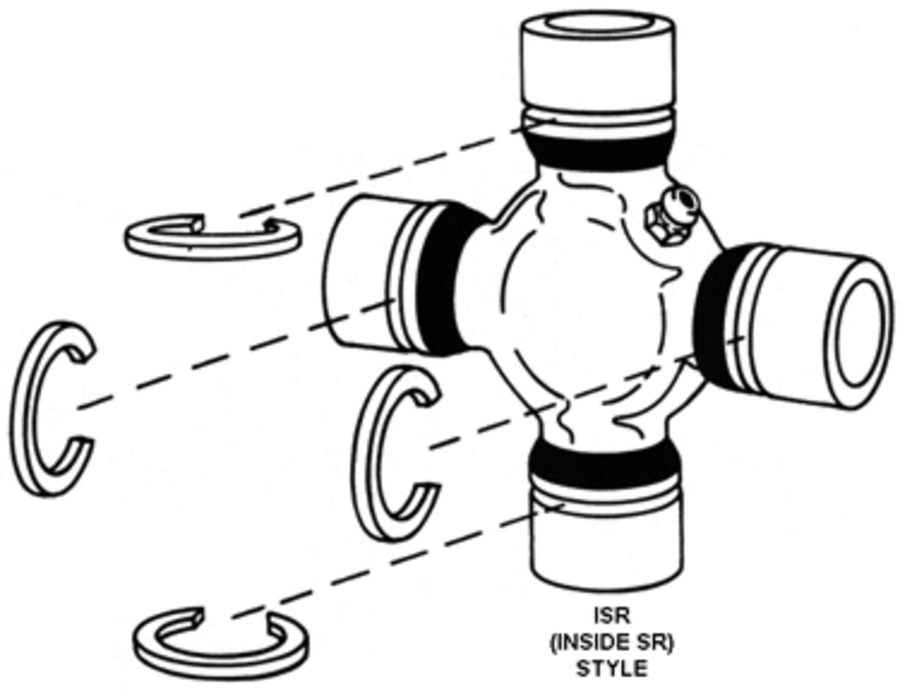

Universal Joint Greaseable Toyota Series ISR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint Greaseable Toyota Series ISR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

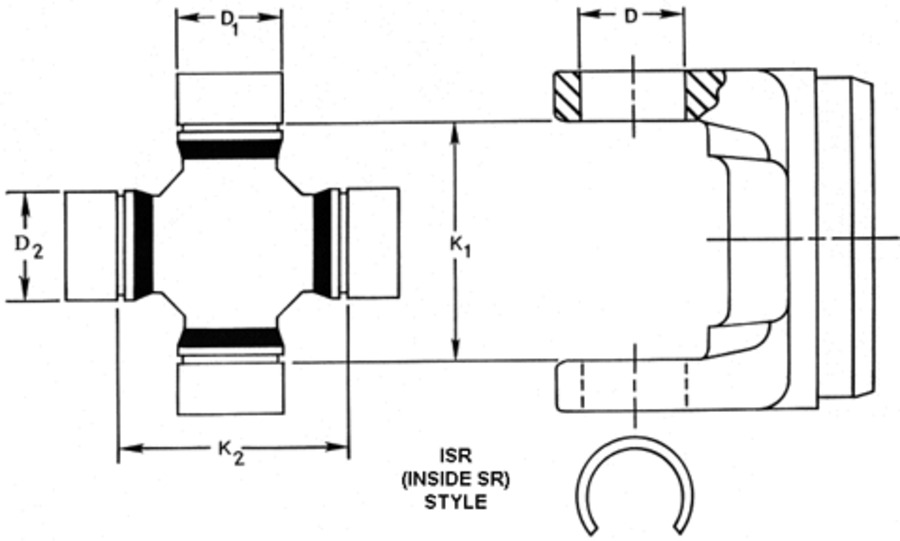

- BrandSpicerSeriesTOYOTAGreaseableYesTypeISR StyleLength A (mm)52.000Bearing Cap Diameter A (mm)29.000Length B (mm)52.000Bearing Cap Diameter B (mm)29.000Drive Type4WD, RWDFitment NotesFront Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionImage PositionFig. A, Location 5, Fig. A, Location 9, Fig. C, Location 5, Fig. C, Location 9, Fig. G, Location 9, Fig. I, Location 2, Fig. I, Location 4, Fig. I, Location 5, Fig. I, Location 9, Fig. J, Location 2, Fig. J, Location 5, Fig. J, Location 7, Fig. J, Location 9, Fig. L, Location 2, Fig. L, Location 3, Fig. L, Location 5, Fig. L, Location 9, Fig. LA, Location 2, Fig. LA, Location 3, Fig. LA, Location 5, Fig. LA, Location 9, Fig. N, Location 2, Fig. N, Location 5, Fig. N, Location 9, Fig. NA, Location 2, Fig. NA, Location 3, Fig. NA, Location 9, Fig. O, Location 2, Fig. O, Location 5, 6, Fig. O, Location 9, Fig. S, Location 5, Fig. S, Location 7, Fig. S, Location 9LocationFront Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionYear1967, 1968, 1969, 1970, 1971, 1972, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024AA Product Line AbbreviationSPIAAP Part Type3100AAP Vendor Number89878Agricultural EquipmentNApplication SpecificYBearing Cap Diameter (2)1.142Bearing Cap Diameter (In)1.142Bearing Cap FinishGroundBearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCar Light TruckYCoating TypeNoneCountry of OriginChinaDistance Btw Snap Ring Grooves2.047Distance Btw Snap Ring Grooves (ISR) (2)2.047Engine SpecificNFreight Class50Grease Fitting LocationIn Bearing CapGrease TypeN.L.G.I. Grade 2Grease Zerk IncludedYesGross Weight1.05 LB, 1.1 LBHardware IncludedNoHeavy Duty TruckNHigh PerformanceNIndustrial Off Highway EquipNInvoiceU-Joint KitLength (In)2.047Length B (In)2.047MarineNMaterialSteelMedium Duty TruckNModel NumberToyotaMotorcycle ATVNMounting Hardware IncludedNoNon-Vehicle SpecificNOEM MfgToyotaOEM SeriesFord/MazdaPackage TypeEAPersonal WatercraftNPre GreasedNoProp 65YesQuantity1Seal Color/FinishBlackSeal MaterialRubberSmall EngineNSnap Ring IncludedYesSnap Ring TypeInternalSnowmobileNTariff Code8482200000Tariff Code8708996810Transmission SpecificNVMRS024002046
