5-795X
Universal Joint
Description

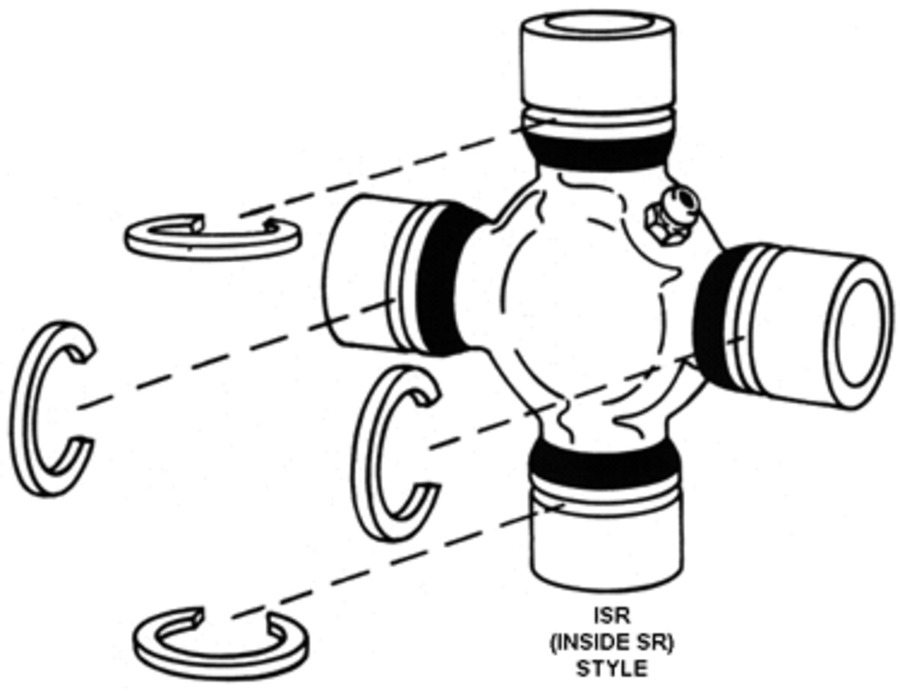

Universal Joint; Non-Greaseable; S44/3R Series
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL universal joints can make in your vehicle, and make sure you are getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.
Description
Universal Joint; Non-Greaseable; S44/3R Series
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL universal joints can make in your vehicle, and make sure you are getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.

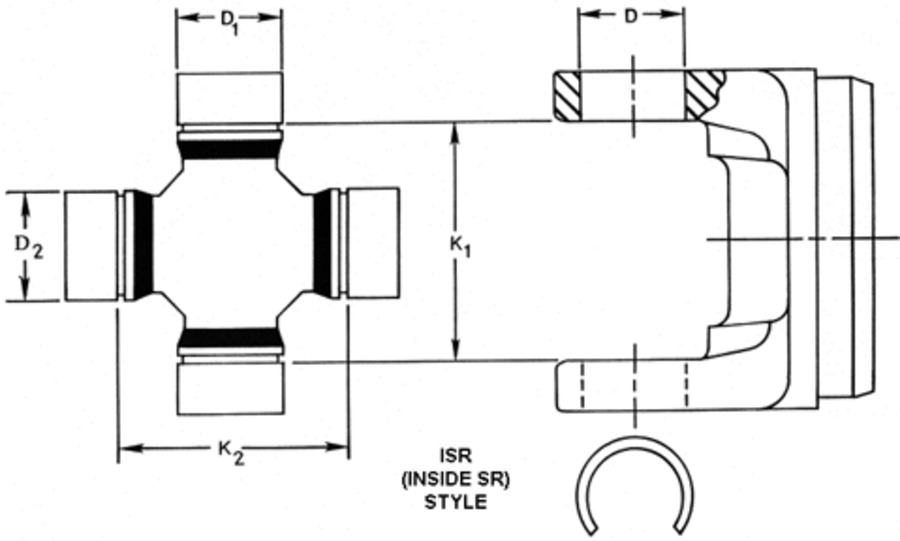

- BrandSPLSeriesS44GreaseableNoTypeISR StyleLength A (mm)64.922Bearing Cap Diameter A (mm)28.575Length B (mm)64.922Bearing Cap Diameter B (mm)28.575Drive Type4WD, RWDFitment NotesFront Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Rear Axle, Rear Driveshaft - CV at Support Bearing, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionImage PositionFig. A, Location 5, Fig. A, Location 9, Fig. AA, Location 6, Fig. AH, Location 5, Fig. AH, Location 9, Fig. AV, Location 2, Fig. AV, Location 5, Fig. AV, Location 9, Fig. B, Location 5, Fig. B, Location 7, Fig. B, Location 9, Fig. D, Location 5, Fig. D, Location 9, 10, Fig. F, Location 5, 6, Fig. F, Location 7, 8, Fig. F, Location 9, 10, Fig. H, Location 5, 6, Fig. H, Location 9, 10, Fig. I, Location 2, Fig. I, Location 3, Fig. I, Location 3, 4, Fig. I, Location 5, Fig. I, Location 9, Fig. IA, Location 2, Fig. J, Location 2, Fig. J, Location 3, Fig. J, Location 3, 4, Fig. J, Location 5, Fig. J, Location 9, Fig. JA, Location 2, Fig. JA, Location 3, Fig. K, Location 3, 4, Fig. L, Location 2, Fig. L, Location 2; Fig. N, Location 2, Fig. L, Location 3, Fig. L, Location 3; Fig. N, Location 3, Fig. L, Location 5, Fig. L, Location 9, Fig. N, Location 2, Fig. N, Location 3, Fig. N, Location 5, Fig. N, Location 7, Fig. N, Location 9, Fig. S, Location 5, Fig. S, Location 7, Fig. S, Location 9LocationFront Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Rear Axle, Rear Driveshaft - CV at Support Bearing, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionYear1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020Bearing Cap Diameter (2)1.125Bearing Cap Diameter (In)1.125Bearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCountry of OriginUSADistance Btw Snap Ring Grooves2.556Distance Btw Snap Ring Grooves (ISR) (2)2.556Grease Zerk IncludedNot RequiredGross Weight1.39 LB, 1.4 LBHardware IncludedNoLength (In)2.556Length B (In)2.556MaterialSteelMounting Hardware IncludedNoOEM MfgMechanicsOEM SeriesS44/3RPackage TypeEAPre GreasedYesQuantity1Snap Ring IncludedYesSnap Ring TypeInternalTariff Code8482200000VMRS Code024002046
