6.5-4-3731X

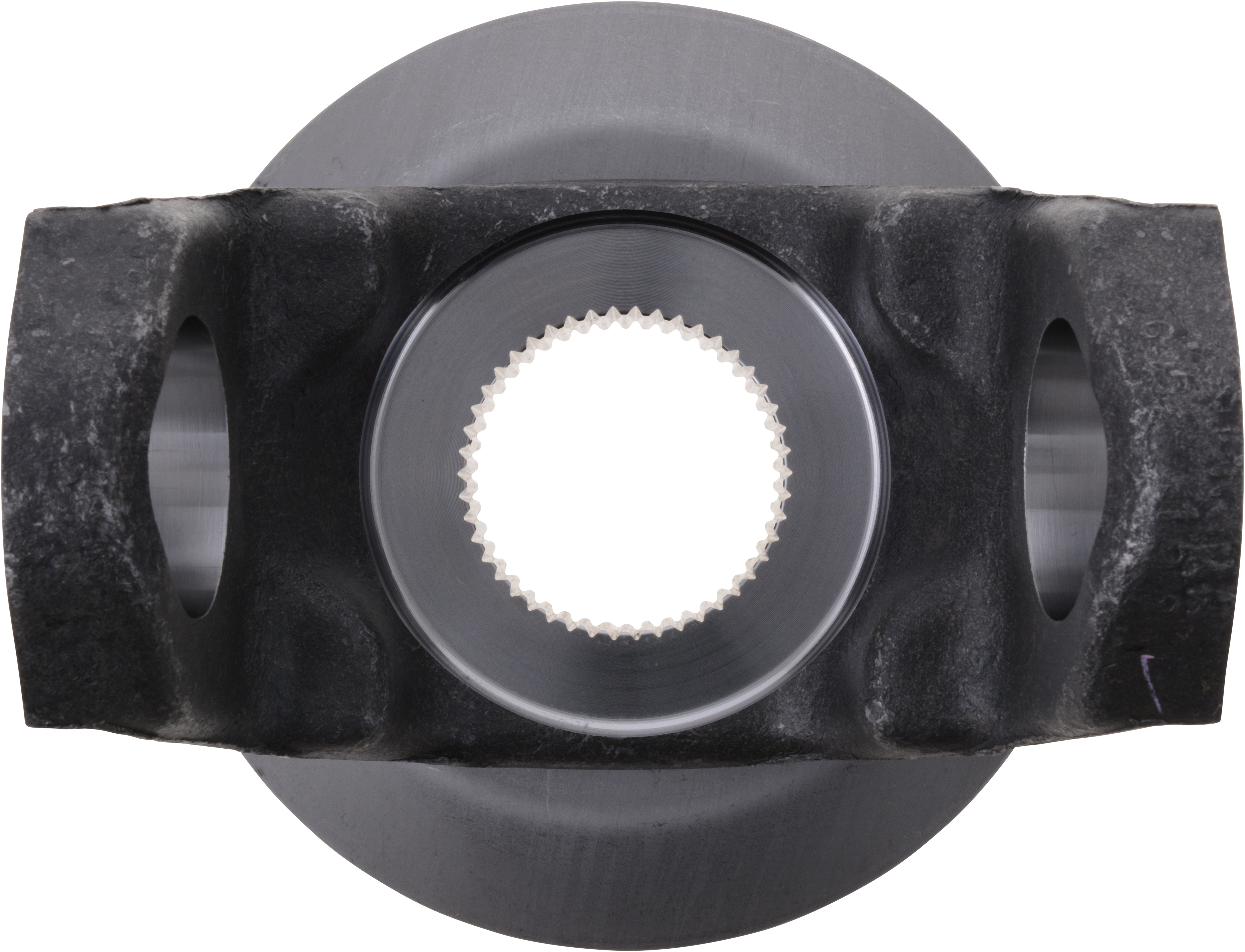

Name: Differential End Yoke
Brand: Spicer

Differential End Yoke

Pinion Shaft End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Pinion Shaft End Yoke

: BrandSpicer
AssemblyY
Box Dimensions8.10 x 8.40 x 8.40 IN
Country of OriginMexico
Gross Weight14.0 LB
Includes Slinger/PlugY
Involute SplineY
MaterialSteel

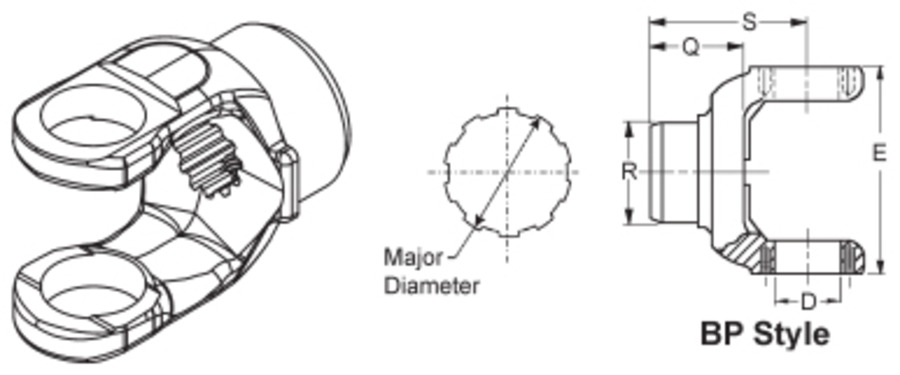

Outside Yoke Dimension (In) E7.547
Tariff Code8708990000, 8708998180
TypeEND YOKE ASSY
TypeSplined Hole
UPC Code23913212056
VMRS Code022003072
Yoke Bearing Dimension (In) D1.938
Series1810
Major Diameter2.390
Spline Count46
Hub Diameter R3.250
Length Thru Hole Q2.312
C/L To End Hub S5.156
C-Bore Depth0.140
Yoke StyleBP
Year0000
