6-53-311

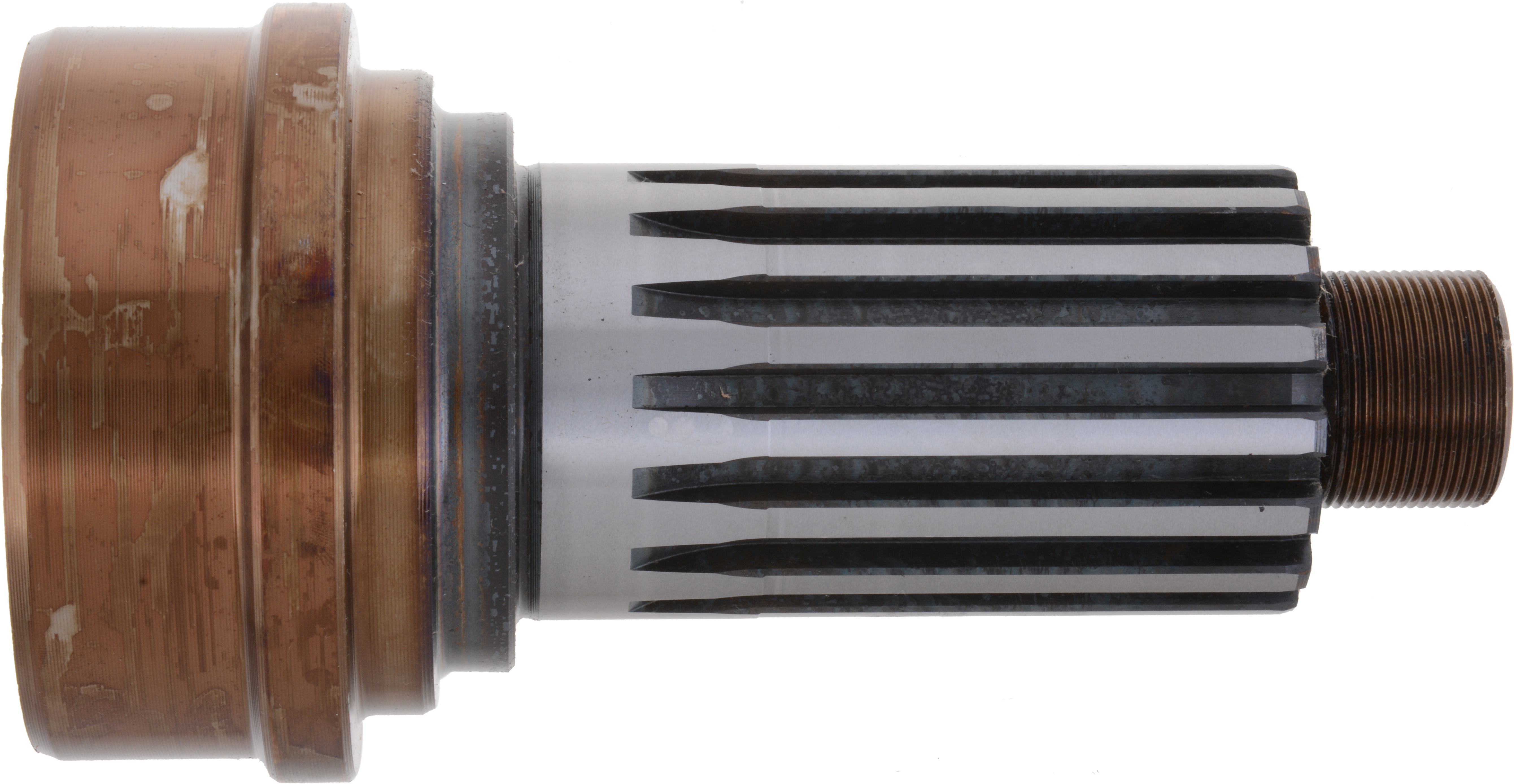

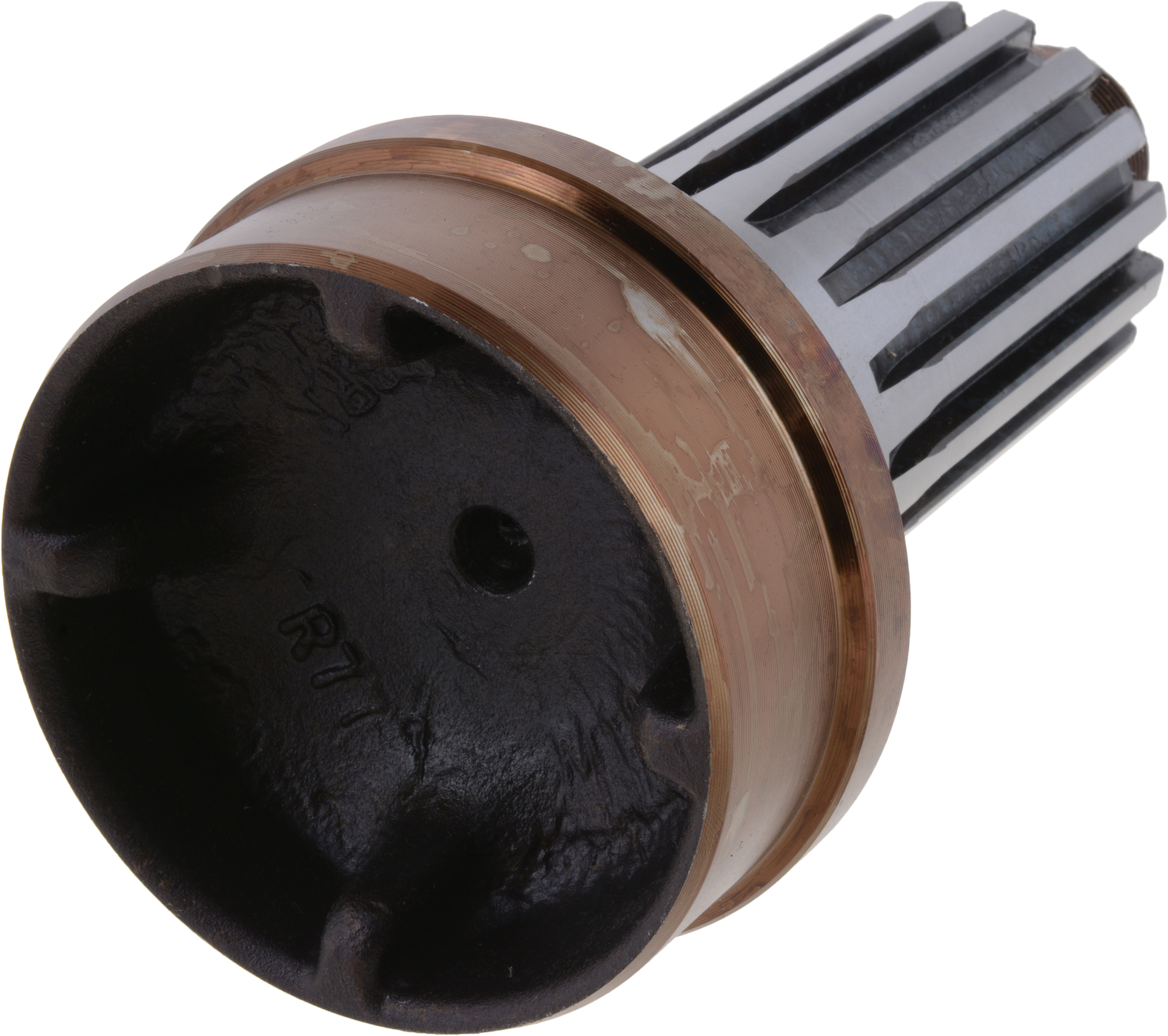

Drive Shaft Midship Stub Shaft
Description
Drive Shaft Midship Stub Shaft
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Description
Drive Shaft Midship Stub Shaft
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

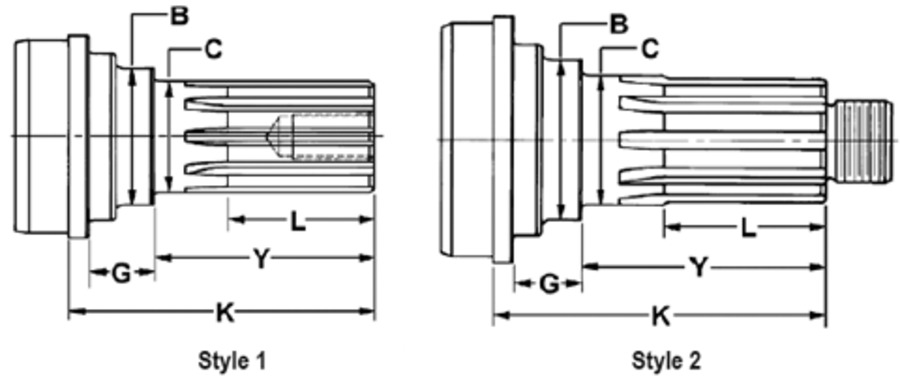

- BrandSpicerSeries1710Number of Splines16Bearing Diameter (C) In.2.362Butt Diameter3.743Shoulder Diameter (B) In.2.875Shoulder Length (G) In..812Spline End To Brg Shoulder (Y)4.000Spline End To Weld (K) In.5.312Spline Length (L) In.2.625Spline O.D.2.350Bearing Diameter (Max)2.3622Bearing Diameter (Min)2.3617Country of OriginUSAFits Tube Diameter4.000Fits Tube Wall.134For Use WithEnd Yoke Or Companion FlangeGross Weight9.79 LBInvoiceMidship Tube ShaftInvoluteNMaterialSteelPackage TypeEAProp 65NoQuantity1Style2Tariff Code8708990000Tariff Code8708998180Thread Size1.250-18VMRS024002060
