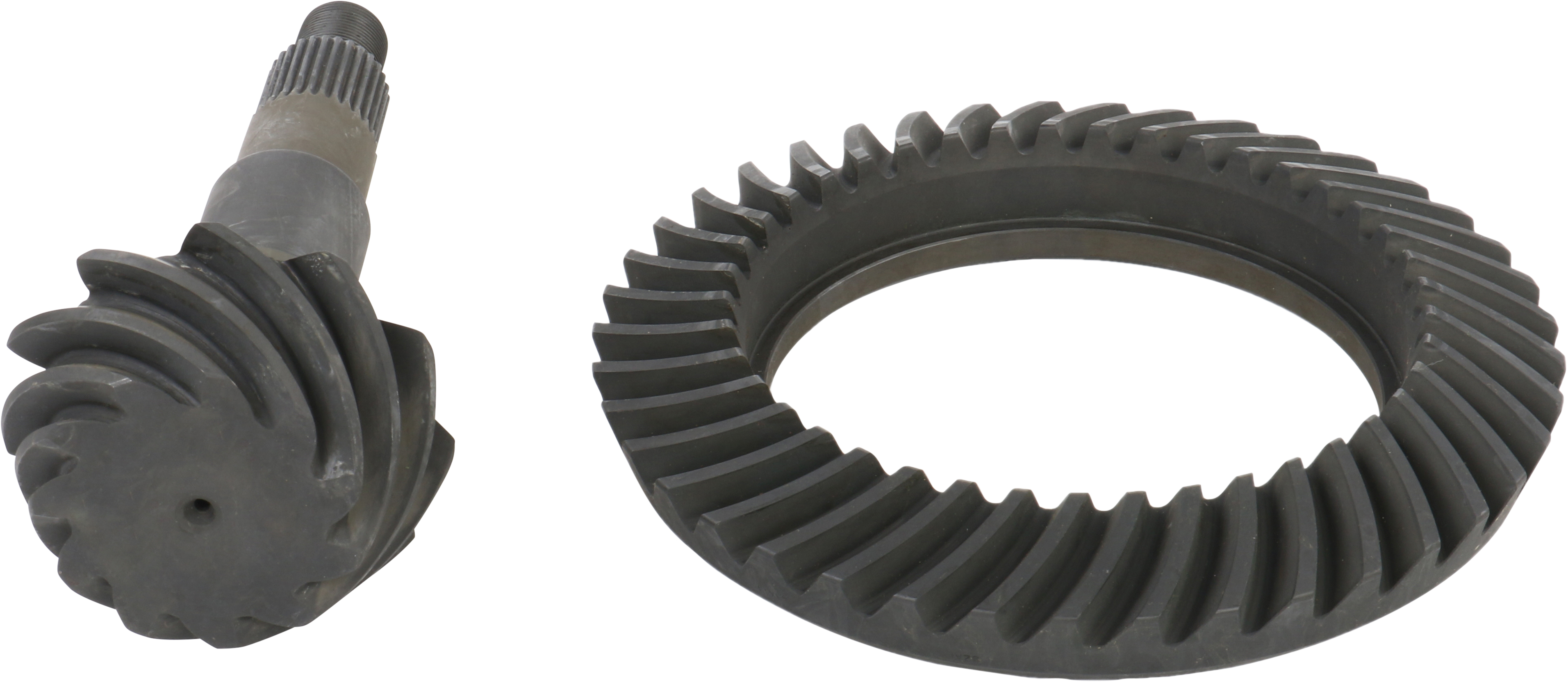

Differential Ring and Pinion
Differential Ring and Pinion - AAM 11.5 Axle 3.73 Ratio
Count on SVL ring and pinion gearing to deliver the ideal blend of coverage, performance, and value for your vehicle. SVL gearing is engineered for all makes and ratios, and the processes that go into manufacturing SVL gearing make all the difference.
Differential Ring and Pinion - AAM 11.5 Axle 3.73 Ratio
Count on SVL ring and pinion gearing to deliver the ideal blend of coverage, performance, and value for your vehicle. SVL gearing is engineered for all makes and ratios, and the processes that go into manufacturing SVL gearing make all the difference.
- BrandSVLAxle ModelGM 11.5Axle TypeFull FloatingBox Dimensions19.00 x 14.00 x 5.80 INCarrier BreaksNoneCountry of OriginIndiaCountry of OriginIndiaCover Bolt Quantity14Gross Weight33.3 LBGross Weight33.3 LBInclude Installation KitNNew Or RemanufacturedNewOn Vehicle LocationRearPinion Gear IncludedYPinion Gear Tooth Quantity11Pinion Nut IncludedNPinion Shaft Diameter2.000Pinion Spline Count30Ring Gear Bolt Qty12Ring Gear Bolt Thread In.M14 X 1.5PRing Gear Diameter (In.)11.500Ring Gear IncludedYRing Gear RotationStandardRing Teeth Count41SeriesGM 11.5Tariff Code8483908080UPC Code23913123352Year2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017Gear Ratio3.73
