2-4-503

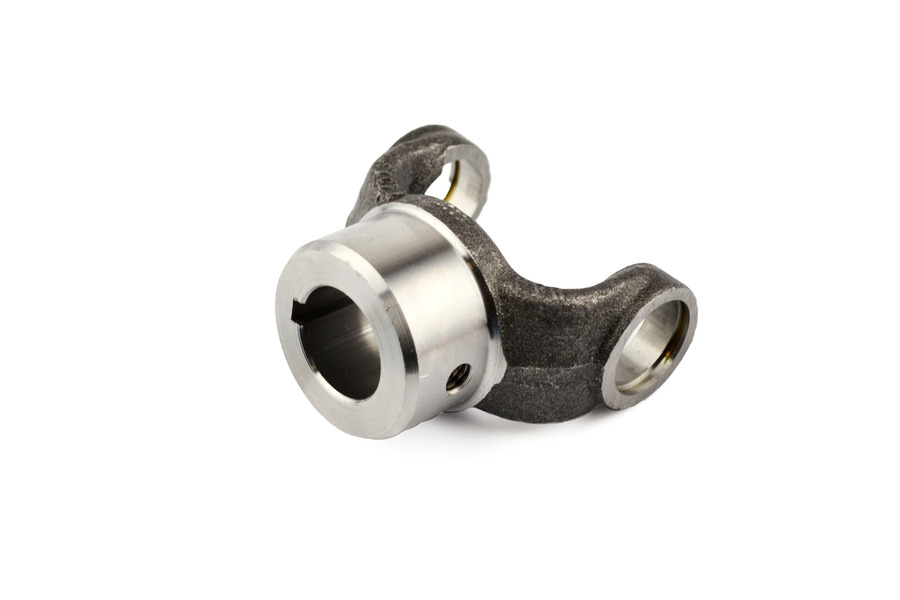

Drive Shaft End Yoke
Description
Drive Shaft End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Description
Drive Shaft End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

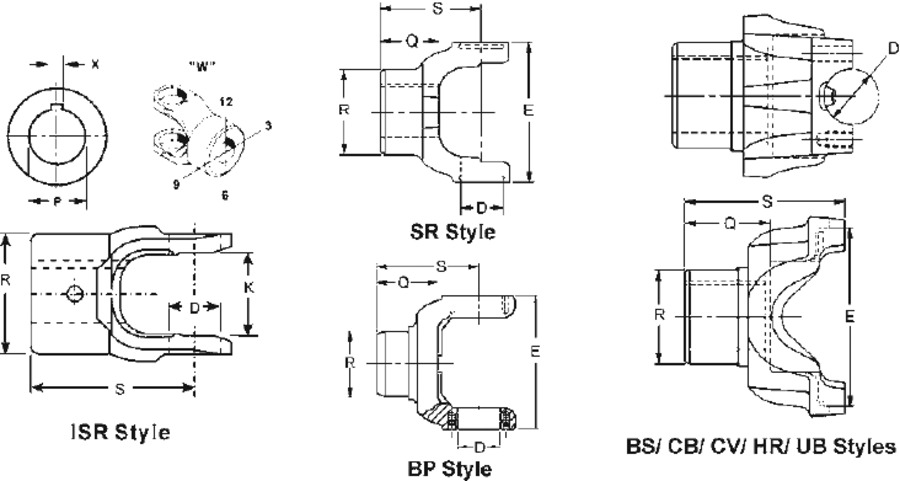

- BrandSpicerModel1310Series1310Hub Diameter R2.125C/L To End Hub S2.562Yoke StyleSRCountry of OriginUSADetailsEND YOKEGross Weight1.54 LBHigh PerformanceNHole Diameter - Max1.1255Hole Diameter - Min1.1245Hole Diameter (In) P1.125Involute SplineNJoint Angle #117Keyway Location W12Keyway Width - Max0.253Keyway Width - Min0.251MaterialSteelOutside Yoke Dimension (In) E3.469Package TypeEAProp 65NoQuantity1Sae Keyway Width (In) X0.250Set Screw Hole Diameter (In)0.375Set Screw Location W6Tariff Code8708990000Tariff Code8708998180TypeStraight Round HoleVMRS056002014Yoke Bearing Dimension (In) D1.062
