2-4-533

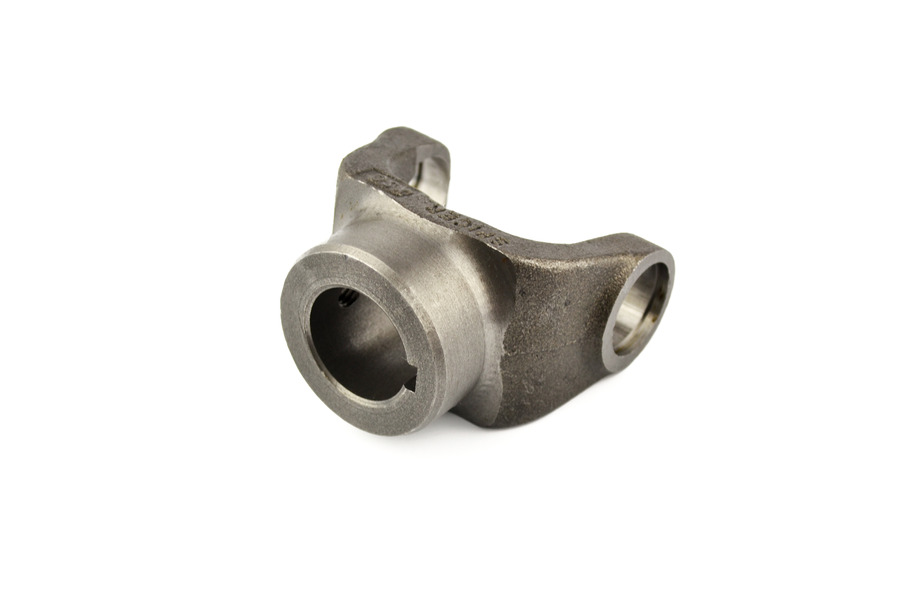

Drive Shaft End Yoke
Description
1310 Series End Yoke
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.
Description
1310 Series End Yoke
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.

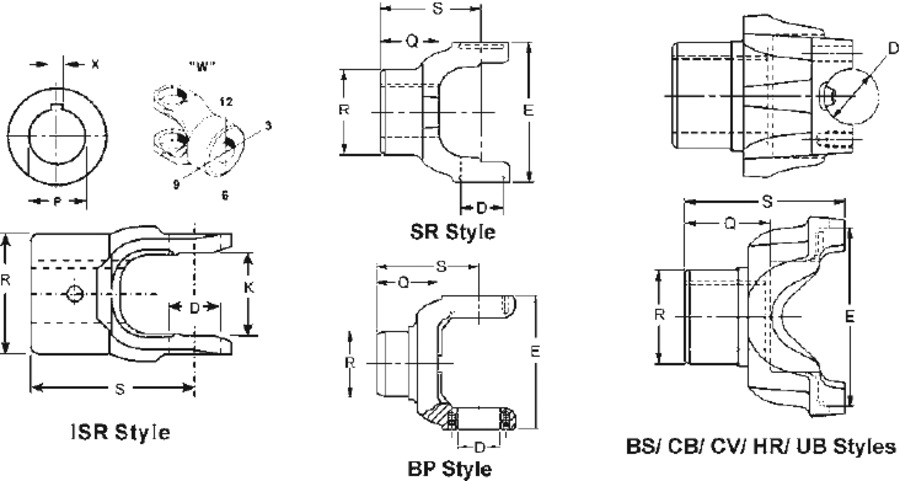

- BrandSpicerModel10 SERIESSeries10 SERIES, 1310Hub Diameter R2.125C/L To End Hub S2.562Yoke StyleSRAA Product Line AbbreviationSPIAAP Vendor Number89878Agricultural EquipmentNApplication SpecificNCar Light TruckNCountry of OriginUSADetailsEND YOKEEngine SpecificNFreight Class50Gross Weight1.70 LBHeavy Duty TruckNHigh PerformanceNHole Diameter - Max1.251Hole Diameter - Min1.250Hole Diameter (In) P1.250Industrial Off Highway EquipYInvolute SplineNJoint Angle #117Keyway Location W12Keyway Width - Max0.3155Keyway Width - Min0.3135MarineNMaterialSteelMedium Duty TruckNMotorcycle ATVNNon-Vehicle SpecificYOutside Yoke Dimension (In) E3.469Package TypeEAPersonal WatercraftNProp 65NoQuantity1Sae Keyway Width (In) X0.312Set Screw Hole Diameter (In)0.375Set Screw Location W6Small EngineNSnowmobileNTariff Code8708990000Tariff Code8708998180Transmission SpecificNTypeStraight Round HoleVMRS024001003Yoke Bearing Dimension (In) D1.062
