2-4-783-1

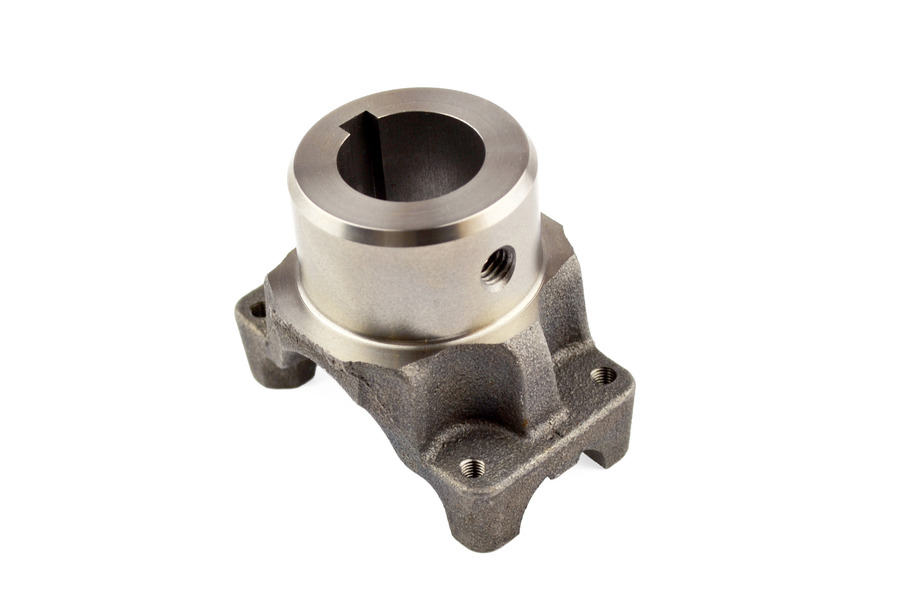

Drive Shaft End Yoke
Description
1310 Series End Yoke
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.
Description
1310 Series End Yoke
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.

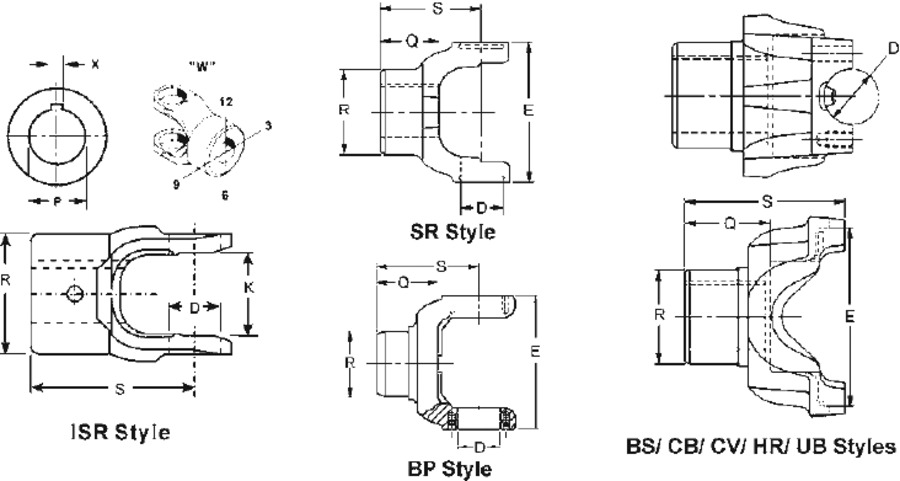

- BrandSpicerCountry of OriginUSAGross Weight0 LB, 1.81 LBHole Diameter - Max1.2505Hole Diameter - Min1.2495Hole Diameter (In) P1.250Involute SplineNJoint Angle #122Keyway Location W12Keyway Width - Max0.3155Keyway Width - Min0.3135MaterialSteelOutside Yoke Dimension (In) E3.219Package TypeEAQuantity1Sae Keyway Width (In) X0.314Set Screw Hole Diameter (In)0.375Set Screw Location W6Tariff Code8708998180TypeStraight Round HoleVMRS024001003Yoke Bearing Dimension (In) D1.062Series1310Hub Diameter R2.120Length Thru Hole Q1.495C/L To End Hub S2.935Yoke StyleBS
