3-4-613-1

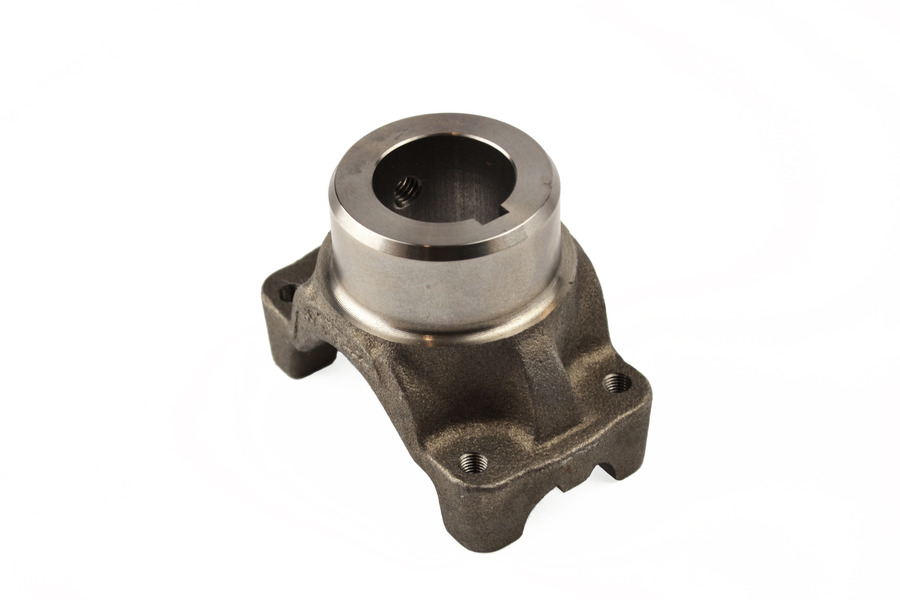

Drive Shaft End Yoke
Description
Drive Shaft End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Description
Drive Shaft End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

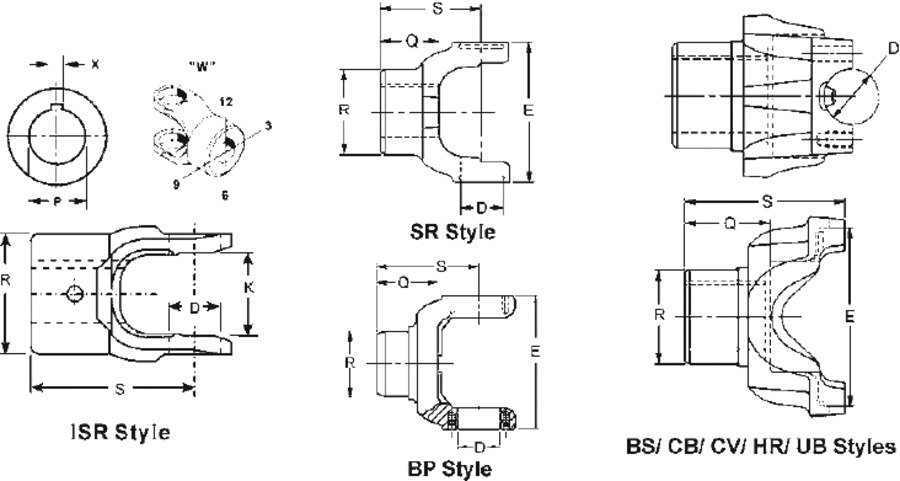

- BrandSpicerModel1350Series1350Hub Diameter R2.250Length Thru Hole Q1.500C/L To End Hub S3.031Yoke StyleBSCountry of OriginUSADetailsEND YOKEGross Weight2.43 LBHigh PerformanceNHole Diameter - Max1.376Hole Diameter - Min1.375Hole Diameter (In) P1.375Involute SplineNJoint Angle #122Keyway Location W12Keyway Width - Max0.3155Keyway Width - Min0.3135MaterialSteelOutside Yoke Dimension (In) E3.625Package TypeEAProp 65NoQuantity1Sae Keyway Width (In) X0.312Set Screw Hole Diameter (In)0.375Set Screw Location W6Tariff Code8708998180Tariff Code8708998180TypeStraight Round HoleVMRS024001003Yoke Bearing Dimension (In) D1.188
