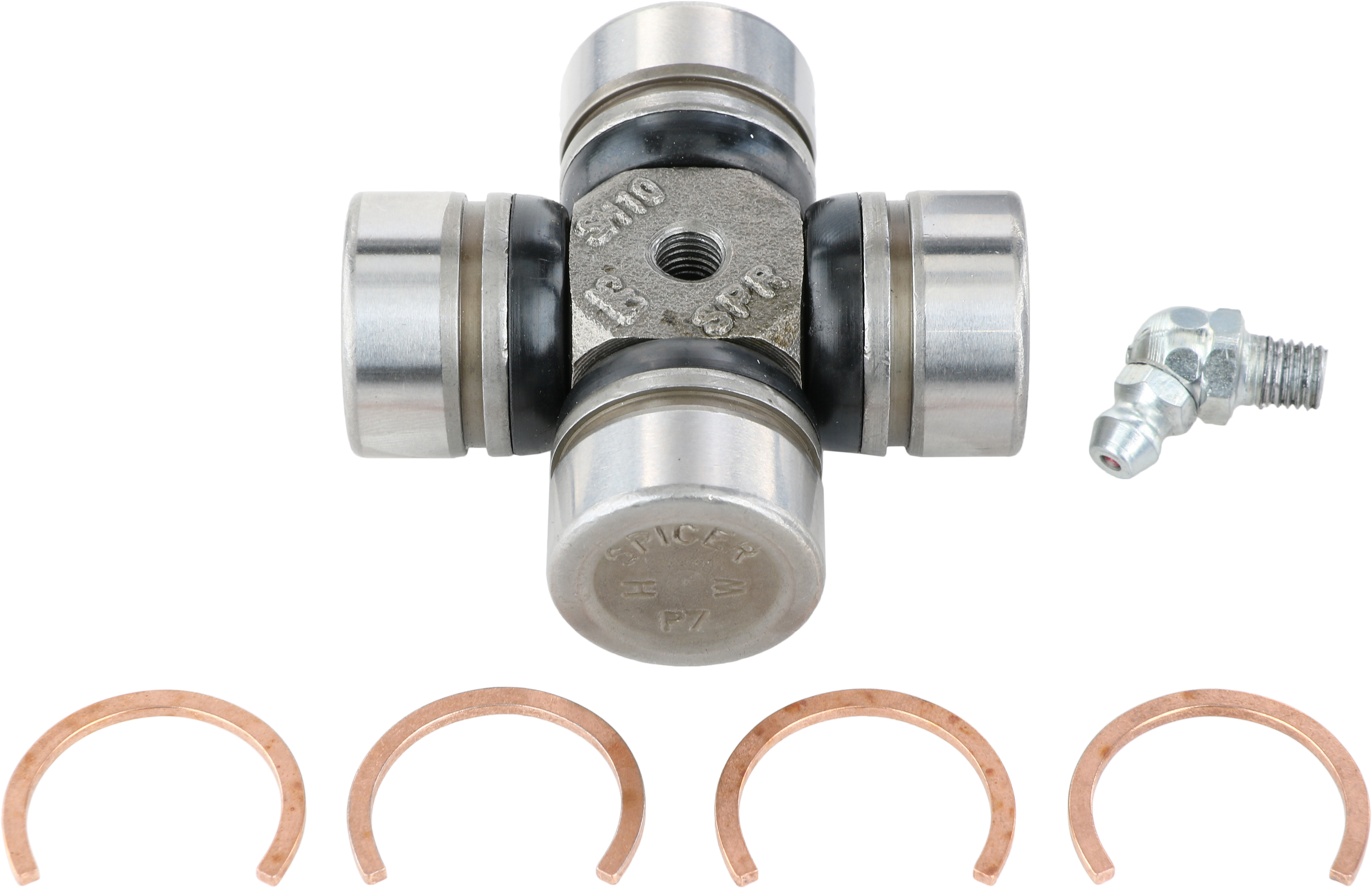

5-103X
Universal Joint
Description
Universal Joint Greaseable 1000SG Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint Greaseable 1000SG Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

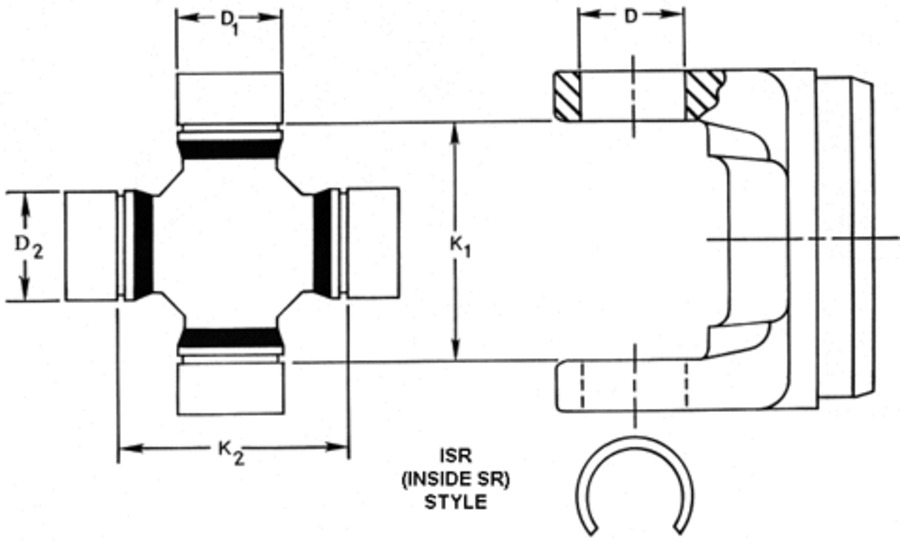

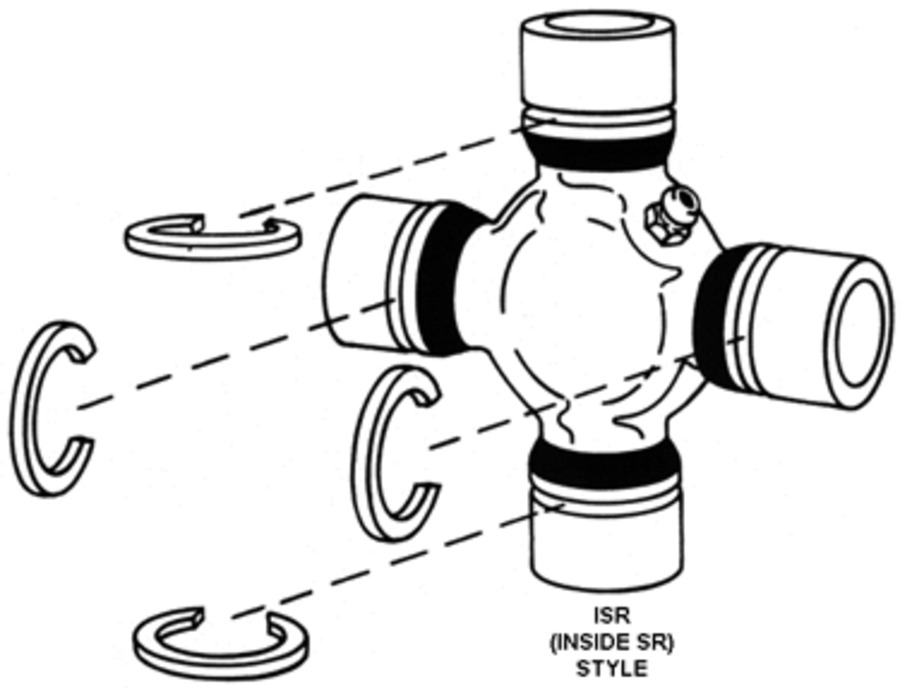

- BrandSpicerModel1000Series1000GreaseableYesAA Product Line AbbreviationSPIAAP Part Type3100AAP Vendor Number89878Agricultural EquipmentNApplication SpecificYBearing Cap Diameter (1)0.938Bearing Cap Diameter (2)0.938Bearing Cap Diameter A (mm)23.825Bearing Cap Diameter B (mm)23.825Bearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCar Light TruckYCountry of OriginUSADetailsU-Joint KitDistance Btw Snap Ring Grooves1.500Distance Btw Snap Ring Grooves (ISR) (2)1.500Engine SpecificNFreight Class50Grease Fitting LocationCenter of CrossGrease Zerk IncludedYesGross Weight0.62 LBHardware IncludedNoHeavy Duty TruckNHigh PerformanceNIndustrial Off Highway EquipNLength A (In)1.500Length A (mm)38.100Length B (In)1.500Length B (mm)38.100MarineNMaterialSteelMedium Duty TruckNMotorcycle ATVNMounting Hardware IncludedNoNon-Vehicle SpecificNOEM MfgSpicerOEM Series1000SGPackage TypeEAPersonal WatercraftNPre GreasedNoProp 65YesQuantity1Small EngineNSnap Ring IncludedYesSnap Ring TypeInternalSnowmobileNTariff Code8708996810Tariff Code8482200000Transmission SpecificNTypeISR StyleVMRS024002046
