5-1310X
Universal Joint
Description
Universal Joint; Non-Greaseable
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL universal joints can make in your vehicle, and make sure you are getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.
Description
Universal Joint; Non-Greaseable
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL universal joints can make in your vehicle, and make sure you are getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.

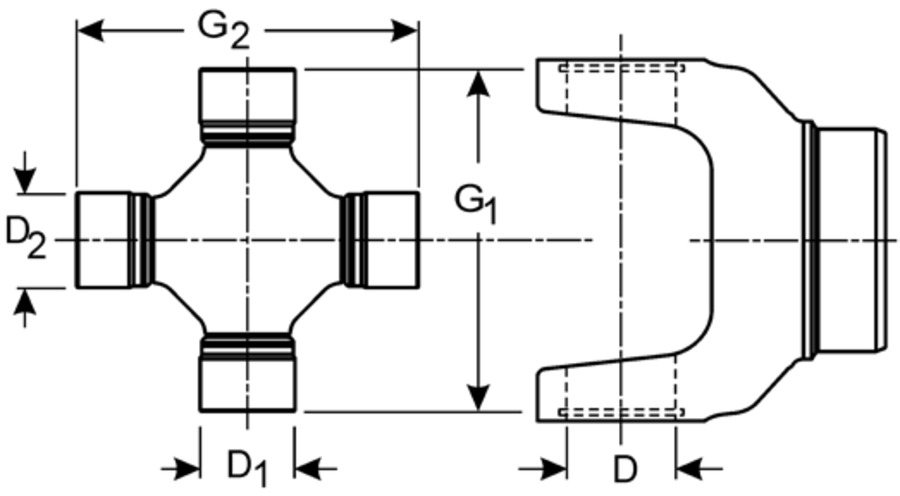

- BrandSPLSeries1310GreaseableNoTypeOSR StyleLength A (mm)81.800Bearing Cap Diameter A (mm)26.975Length B (mm)81.800Bearing Cap Diameter B (mm)26.975Drive Type4WD, RWDFitment NotesFront Axle at Wheels, Front Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Intermediate Shaft at Transmission, Rear Driveshaft - CV at Rear Axle, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Rear Axle; with Outside Snap Rings, Rear Driveshaft at Support Bearing, Rear Driveshaft at Transmission, Rear Driveshaft at Transmission; with Outside Snap RingsImage PositionFig. A, Location 5, Fig. A, Location 9, Fig. AA, Location 2, Fig. AA, Location 3, Fig. AA, Location 5, Fig. AA, Location 5, 6, Fig. AA, Location 9, Fig. AG, Location 5, Fig. AG, Location 9, Fig. AH, Location 2, Fig. AH, Location 3, Fig. AH, Location 5, Fig. AH, Location 9, Fig. AT, Location 7, Fig. AT, Location 9, Fig. AV, Location 2, Fig. AV, Location 5, Fig. AV, Location 9, Fig. B, Location 5, Fig. B, Location 7, Fig. B, Location 9, Fig. D, Location 5, Fig. D, Location 9, 10, Fig. E, Location 5, Fig. E, Location 9, Fig. I, Location 1, Fig. I, Location 2, Fig. I, Location 3, Fig. I, Location 3, 4, Fig. I, Location 5, Fig. I, Location 9, Fig. IA, Location 2, Fig. IA, Location 3, 4, Fig. IA, Location 5, Fig. IA, Location 9, Fig. J, Location 2, Fig. J, Location 3, 4, Fig. J, Location 5, Fig. J, Location 7, Fig. J, Location 9, Fig. JA, Location 2, Fig. JA, Location 3, 4, Fig. JA, Location 5, Fig. JA, Location 7, Fig. JA, Location 9, Fig. K, Location 12, Fig. K, Location 13, Fig. K, Location 2, Fig. K, Location 3, 4, Fig. K, Location 5, Fig. K, Location 9, Fig. L, Location 2, Fig. L, Location 3, Fig. L, Location 5, Fig. L, Location 9, Fig. LA, Location 2, Fig. LA, Location 3, Fig. M, Location 12, Fig. M, Location 13, Fig. M, Location 5, Fig. M, Location 9, Fig. N, Location 2, Fig. N, Location 3, Fig. N, Location 5, Fig. N, Location 7, Fig. N, Location 9, Fig. O, Location 2, Fig. O, Location 3, 4, Fig. O, Location 5, 6, Fig. O, Location 9, Fig. Q, Location 13, Fig. Q, Location 2, Fig. Q, Location 3, 4, Fig. Q, Location 5, Fig. Q, Location 9, Fig. S, Location 5, Fig. S, Location 7, Fig. S, Location 9, Fig. U, Location 5, Fig. U, Location 7, Fig. U, Location 9, Fig. WA, Location 7, Fig. Y, Location 2, Fig. Y, Location 3, Fig. Z, Location 2, Fig. Z, Location 3LocationFront Axle at Wheels, Front Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Intermediate Shaft at Transmission, Rear Driveshaft - CV at Rear Axle, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Rear Axle; with Outside Snap Rings, Rear Driveshaft at Support Bearing, Rear Driveshaft at Transmission, Rear Driveshaft at Transmission; with Outside Snap RingsYear1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024Bearing Cap Diameter (2)1.062Bearing Cap Diameter (In)1.062Bearing Cap TypeRoundBearing Cap Type AOSRBearing Cap Type BOSRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCountry of OriginUSAGrease Zerk IncludedNot RequiredGross Weight1.2 LB, 1.23 LBHardware IncludedNoLength (In)3.219Length B (In)3.219MaterialSteelMounting Hardware IncludedNoOEM MfgSpicerOEM Series1310/SPL22Package TypeEAPre GreasedYesQuantity1Snap Ring IncludedYesSnap Ring TypeExternalSR(1)Brng Cap to Brng Cap(OSR)3.219SR(2)Brng Cap to Brng Cap(OSR)3.219Tariff Code8483604000VMRS024002046
