15-134X

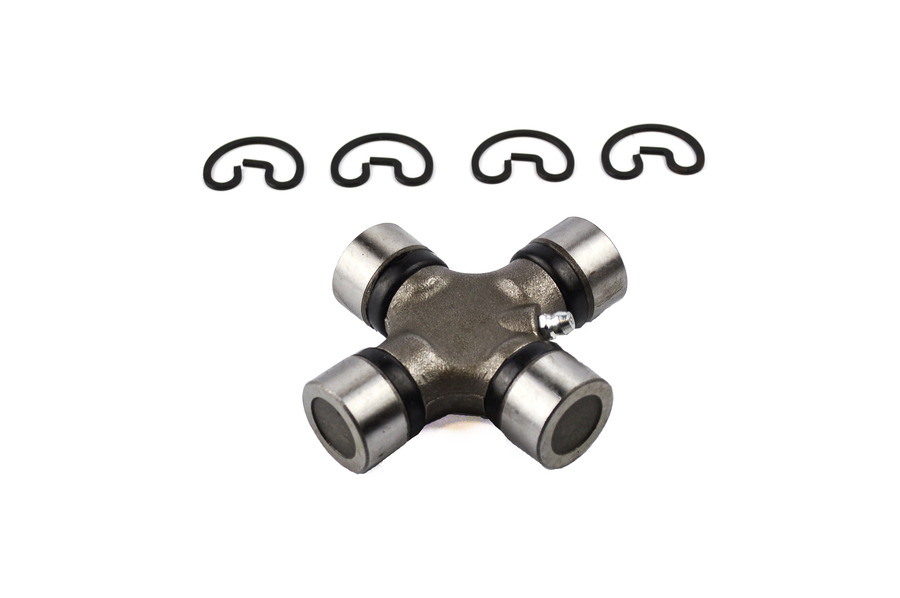

Universal Joint
Description
Universal Joint; Greaseable
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint; Greaseable
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- BrandSVLDrive Type4WD, RWDFitment NotesFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Intermediate Shaft at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionImage PositionFig. B, Location 5, Fig. B, Location 7, Fig. B, Location 9, Fig. M, Location 12, Fig. M, Location 13, Fig. M, Location 2, Fig. M, Location 3, Fig. M, Location 5, Fig. M, Location 9, Fig. Q, Location 12, Fig. Q, Location 13Year1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978Series1310-1330GreaseableYesBearing Cap Diameter (In)1.062Length (In)3.219LocationFront Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Intermediate Shaft at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionBearing Cap Diameter (2)1.062Bearing Cap Diameter A (mm)26.975Bearing Cap Diameter B (mm)26.975Bearing Cap TypeRoundBearing Cap Type AOSRBearing Cap Type BOSRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govConverts This Series1310Country of OriginChinaGrease Fitting LocationSide of CrossGrease Zerk IncludedYesGross Weight1.19 LBHardware IncludedNoHigh PerformanceNInvoiceLD SVL U-JOINT KITLength A (mm)81.800Length B (In)3.625Length B (mm)92.100MaterialSteelMounting Hardware IncludedNoOEM MfgSpicerOEM Series1310/1330Package TypeEAPre GreasedNoProp 65YesQuantity1Snap Ring IncludedYesSnap Ring TypeExternalSR(1)Brng Cap to Brng Cap(OSR)3.219SR(2)Brng Cap to Brng Cap(OSR)3.625Tariff Code8708996810Tariff Code8708998180To This Series1330TypeOSR StyleVMRS024002046
