15-3147X

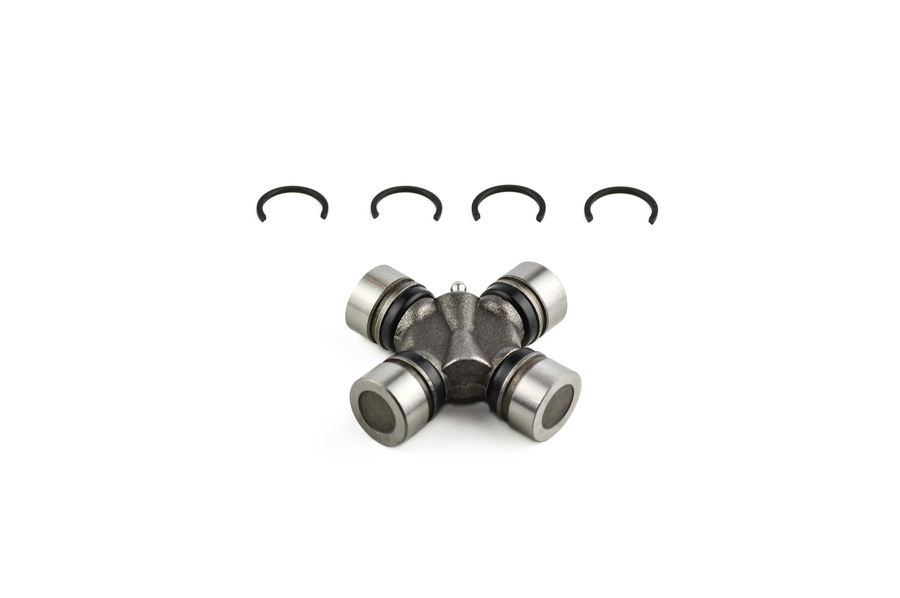

Universal Joint
Description
Universal Joint; Greaseable; S44/3R Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint; Greaseable; S44/3R Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- BrandSVLDrive Type4WD, RWDFitment NotesFront Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Rear Axle, Rear Driveshaft - CV at Support Bearing, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionImage PositionFig. A, Location 5, Fig. A, Location 9, Fig. AA, Location 6, Fig. AH, Location 5, Fig. AH, Location 9, Fig. AV, Location 2, Fig. AV, Location 5, Fig. AV, Location 9, Fig. B, Location 5, Fig. B, Location 7, Fig. B, Location 9, Fig. D, Location 5, Fig. D, Location 9, 10, Fig. F, Location 5, 6, Fig. F, Location 7, 8, Fig. F, Location 9, 10, Fig. H, Location 5, 6, Fig. H, Location 9, 10, Fig. I, Location 2, Fig. I, Location 3, Fig. I, Location 3, 4, Fig. I, Location 5, Fig. I, Location 9, Fig. IA, Location 2, Fig. J, Location 2, Fig. J, Location 3, Fig. J, Location 3, 4, Fig. J, Location 5, Fig. J, Location 9, Fig. JA, Location 2, Fig. JA, Location 3, Fig. K, Location 3, 4, Fig. L, Location 2, Fig. L, Location 2; Fig. N, Location 2, Fig. L, Location 3, Fig. L, Location 3; Fig. N, Location 3, Fig. L, Location 5, Fig. L, Location 9, Fig. N, Location 2, Fig. N, Location 3, Fig. N, Location 5, Fig. N, Location 7, Fig. N, Location 9, Fig. S, Location 5, Fig. S, Location 7, Fig. S, Location 9Year1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020Series1310GreaseableYesBearing Cap Diameter (In)1.125Length (In)2.556LocationFront Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, Rear Driveshaft - CV at Rear Axle, Rear Driveshaft - CV at Support Bearing, Rear Driveshaft - CV at Transmission, Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionBearing Cap Diameter (2)1.125Bearing Cap Diameter A (mm)28.575Bearing Cap Diameter B (mm)28.575Bearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCountry of OriginChinaDistance Btw Snap Ring Grooves2.556Distance Btw Snap Ring Grooves (ISR) (2)2.556Grease Fitting LocationSide of CrossGrease Zerk IncludedYesGross Weight1.37 LBHardware IncludedNoHigh PerformanceNInvoiceLD SVL U-JOINT KITSLength A (mm)64.922Length B (In)2.556Length B (mm)64.922MaterialSteelMounting Hardware IncludedNoOEM MfgMechanicsOEM SeriesS44/3RPackage TypeEAPre GreasedNoProp 65YesQuantity1Snap Ring IncludedYesSnap Ring TypeInternalTariff Code8708996810Tariff Code8708998180TypeISR StyleVMRS024002046
