5-170X
Universal Joint
Description

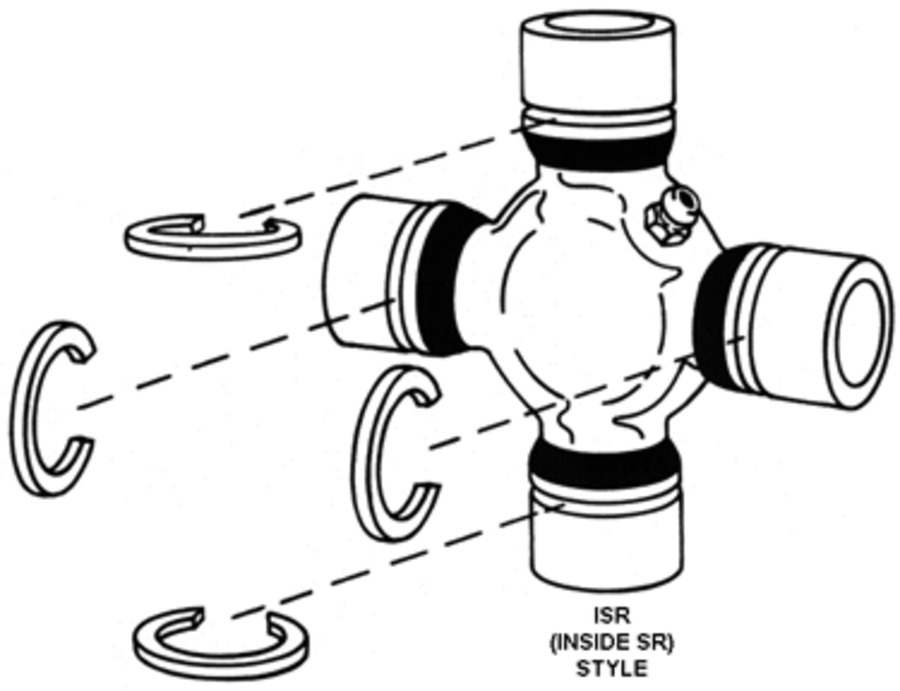

Universal Joint Greaseable; Spicer 1000 Series PTO u-joint
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint Greaseable; Spicer 1000 Series PTO u-joint
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

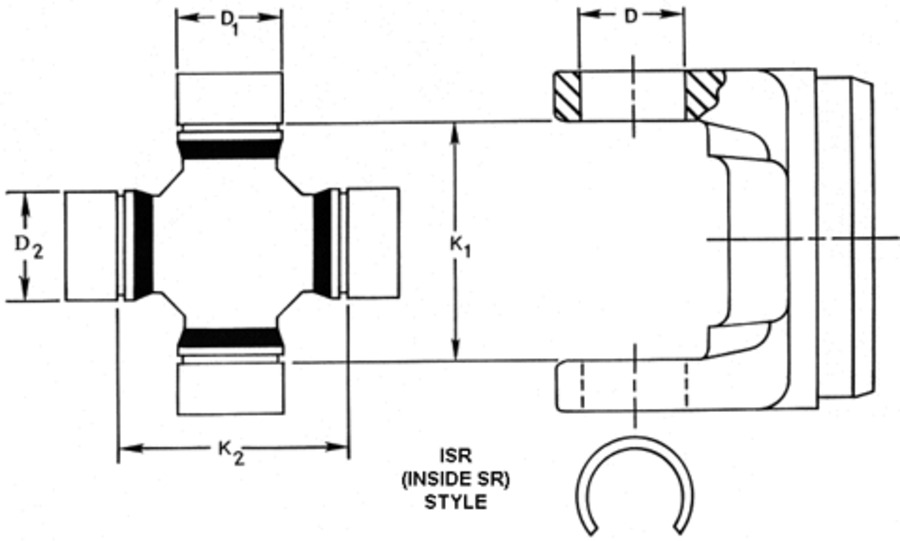

- BrandSpicerGreaseableYesTypeISR StyleLength A (mm)38.100Bearing Cap Diameter A (mm)23.825Length B (mm)38.100Bearing Cap Diameter B (mm)23.825Bearing Cap Diameter (2)0.938Bearing Cap Diameter (In)0.938Bearing Cap TypeRound with ISR GrooveBearing Cap Type AISRBearing Cap Type BISRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCountry of OriginUSADistance Btw Snap Ring Grooves1.500Distance Btw Snap Ring Grooves (ISR) (2)1.500Grease Fitting LocationCenter of CrossGrease Zerk IncludedYesGross Weight0.66 LB, 0.661 LBHardware IncludedNoLength (In)1.500Length B (In)1.500MaterialSteelMounting Hardware IncludedNoOEM MfgSpicerOEM Series1000Package TypeEAPre GreasedNoQuantity1Snap Ring IncludedYesSnap Ring TypeInternalTariff Code8708998180VMRS Code024002046
