5-188X

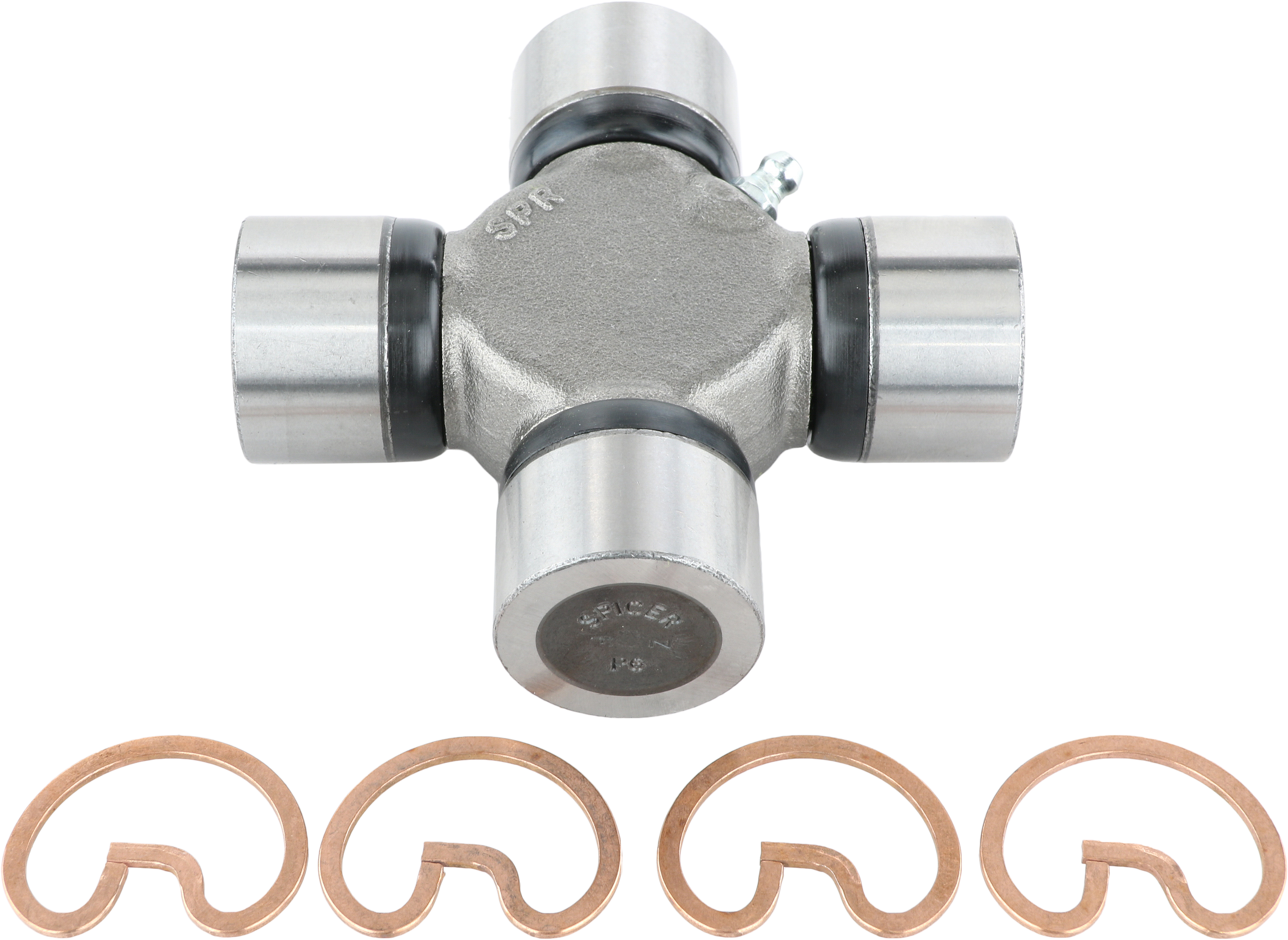

Universal Joint
Description
Universal Joint Greaseable 1480 Series OSR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Description
Universal Joint Greaseable 1480 Series OSR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- BrandSpicerDrive Type4WD, RWDFitment NotesRear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionImage PositionFig. A, Location 5, Fig. A, Location 9, Fig. B, Location 5, Fig. B, Location 7, Fig. B, Location 9, Fig. I, Location 5, Fig. I, Location 9, Fig. J, Location 5, Fig. J, Location 7, Fig. J, Location 9, Fig. JB, Location 5, Fig. JB, Location 7, 8, Fig. JB, Location 9, Fig. L, Location 5, Fig. L, Location 9, Fig. N, Location 5, Fig. N, Location 7, Fig. N, Location 9, Fig. R, Location 5, Fig. R, Location 7, 8, Fig. R, Location 9, Fig. S, Location 5, Fig. S, Location 7, Fig. S, Location 9Year1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025Series1480GreaseableYesBearing Cap Diameter (In)1.375Length (In)4.188LocationRear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing, Rear Driveshaft at TransmissionAA Product Line AbbreviationSPIAAP Part Type3100AAP Vendor Number89878Agricultural EquipmentNApplication SpecificYBearing Cap Diameter (2)1.375Bearing Cap Diameter A (mm)34.900Bearing Cap Diameter B (mm)34.900Bearing Cap TypeRoundBearing Cap Type AOSRBearing Cap Type BOSRCalifornia Proposition 65 Warning: Cancer and Reproductive Harm - www.p65warnings.ca.govCar Light TruckYCountry of OriginUSAEngine SpecificNFreight Class50Grease Fitting LocationSide of CrossGrease Zerk IncludedYesGross Weight2.60 LBHardware IncludedNoHeavy Duty TruckNHigh PerformanceNIndustrial Off Highway EquipNInvoiceU-Joint KitLength A (mm)106.400Length B (In)4.188Length B (mm)106.400MarineNMaterialSteelMedium Duty TruckNMotorcycle ATVNMounting Hardware IncludedNoNon-Vehicle SpecificNOEM MfgSpicerOEM Series1480Package TypeEAPersonal WatercraftNPre GreasedNoProp 65YesQuantity1Small EngineNSnap Ring IncludedYesSnap Ring TypeExternalSnowmobileNSR(1)Brng Cap to Brng Cap(OSR)4.188SR(2)Brng Cap to Brng Cap(OSR)4.188Tariff Code8708996810Tariff Code8708998180Transmission SpecificNTypeOSR StyleVMRS024002046
