328347

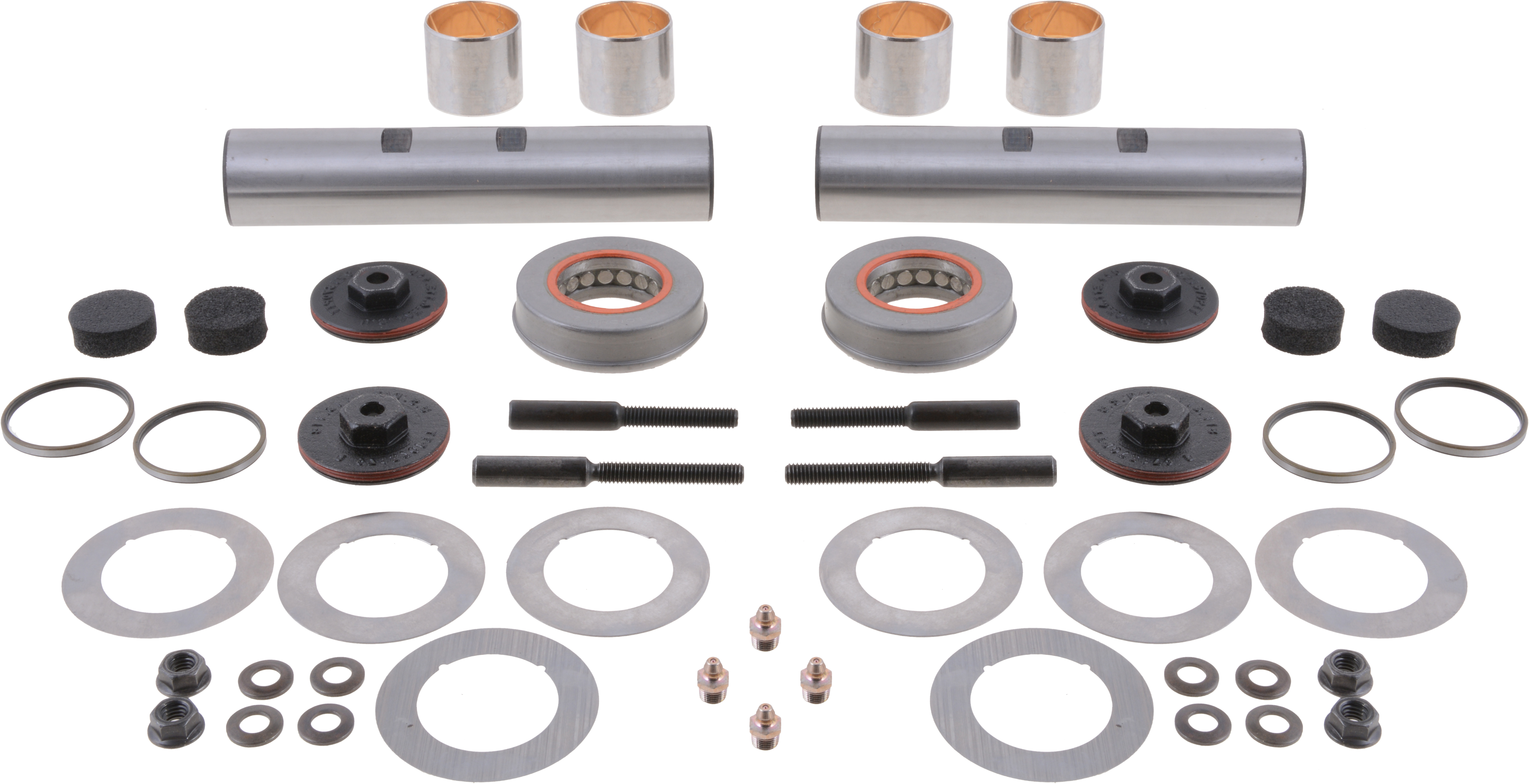

Kit - King Pin

Spicer king pin kits, tie rod ends, and drag links are built to OE specifications, delivering optimal performance in your heavy-duty vehicle.

Kit - King Pin

Spicer king pin kits, tie rod ends, and drag links are built to OE specifications, delivering optimal performance in your heavy-duty vehicle.

: BrandSpicer
SeriesE1462I
Bushing MaterialBronze
Bushing Length1.82
Bushing O.D.2.06
Thrust Bearing Height0.937
Thrust Bearing I.D.1.885
Thrust Bearing O.D.3.276
Bushing Number1460HD100
Bushing TypePre-Sized
Country of OriginChina
DetailsKIT - KING PIN; E-1462I DUAL DRAW K
Diameter1.87
Draw 2 Quantity2
Drawkey 1 Length4.23
Drawkey 1 Quantity2
Drawkey 1 TypeH
Drawkey 2 Length3.73
Drawkey 2 TypeH
Gross Weight20.24 LB
Length9.06
ModelE1462I, SPICER E1002 - 1462
Package TypeEA
Pin Number1460SC102
Pin Type9
Prop 65No
Quantity1
Spicer AxleY
Tariff Code8708509900
Tariff Code8708507200
Thrust Bearing220HC104
VMRS011001010
